The PVDF Advantage: Ultra-Low Absorption and Fast System Startup

PVDF is highly valued by quality control directors because it is chemically inert and naturally resistant to foulants. The OmniGuard™ series PVDF Pleated Membrane Element features a single-layer PVDF matrix that is easily wettable and draws water into its pore structure instantly and uniformly. This allows for immediate system startup without requiring complex alcohol pre-treatment or flushing procedures.

The defining characteristic of this membrane is its minimal affinity for proteins and complex organic molecules. Instead of binding to the surface and forming a restrictive layer that hinders flow, ingredients pass through the membrane completely unaltered.

Deploying this specialized PVDF membrane delivers distinct production advantages:

• Maximum Product Yield: By preventing the absorption of delicate proteins and color compounds, the filter ensures your beverage retains its intended body, aroma, and visual clarity from the start of the batch to the finish.
• Extended Service Life: Because the pores do not prematurely bind with proteins, the cartridge resists blinding and handles higher total volumes, maintaining a high flow rate with a low pressure drop.

Precision Micron Ratings for Target Sterilization and Clarification

To match your specific process risks and fluid properties, the OmniGuard™ series is manufactured in four precise absolute micron tiers:

• 0.22 Micron (Certified Sterile Grade): The definitive global standard for cold sterilization. Fully validated to retain a minimum challenge concentration of 10 7 colony-forming units (CFU) per square centimeter of Brevundimonas diminuta according to ASTM F838, this rating guarantees the complete removal of spoilage bacteria, wild yeasts, and mold spores right before packaging.
• 0.45 Micron (Microbial Stabilization): Optimized for wine, cider, and biologicalsolutions to capture destructive spoilage organisms like Lactobacillus while maximizing processing speeds and preserving color density.
• 0.65 Micron (Yeast Control & Polish): Specifically designed for breweries and juice processors to achieve an absolute cutoff for yeast and large bacteria without stripping essential proteins or mouthfeel.
• 1.0 Micron (High-Efficiency Prefiltration & Clarification): A heavy-duty polishing element engineered to capture fine colloids, macro-proteins, and organic hazes, acting as a high-capacity shield for downstream sterile loops.

Rugged Thermal Integrity for Intensive CIP and Steam Operations

High sanitary standards require regular clean-in-place chemical washes and thermal sanitization to eliminate the risk of biofilm accumulation. A standard filter element can distort or suffer endcap failure when exposed to these extreme temperature fluctuations.

OmniGuard™ cartridges are built to thrive under thermal stress. The PVDF membrane is supported by heavy-duty polypropylene backing layers and encased in a thick-walled outer cage, rigid inner core, and robust endcaps. Every single junction is bound using advanced thermal welding, completely eliminating glues, adhesives, or resin binders.

This robust design provides excellent mechanical and thermal resistance, allowing the cartridge to withstand repeated hot water sanitation flushes, autoclave processing, and in- line steam sterilization cycles up to 134°C (273°F).

Material Purity and Global Regulatory Compliance

Consumer safety demands complete manufacturing transparency. Every OmniGuard™ filter element is produced in a certified ISO quality management environment to guarantee absolute purity from our factory to your line.

All materials used in construction are completely free of silicone, surfactants, and manufacturing lubricants. They comply fully with FDA regulations for direct food contact
under 21 CFR, meet European Commission food safety directives including EC Number 1935/2004, and pass strict United States Pharmacopeia Class VI plastics evaluations for extractables. Every individual cartridge is marked with a unique serial number to ensure total traceability.

Specifications and Operational Parameters

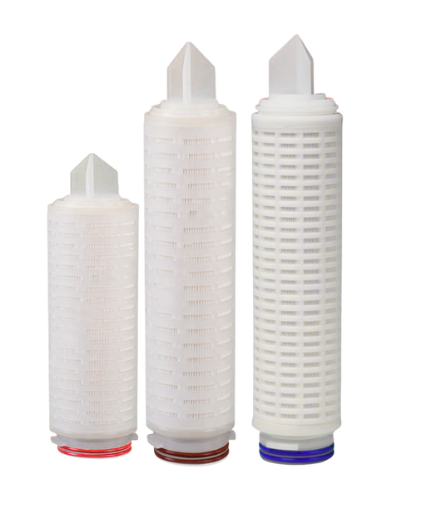

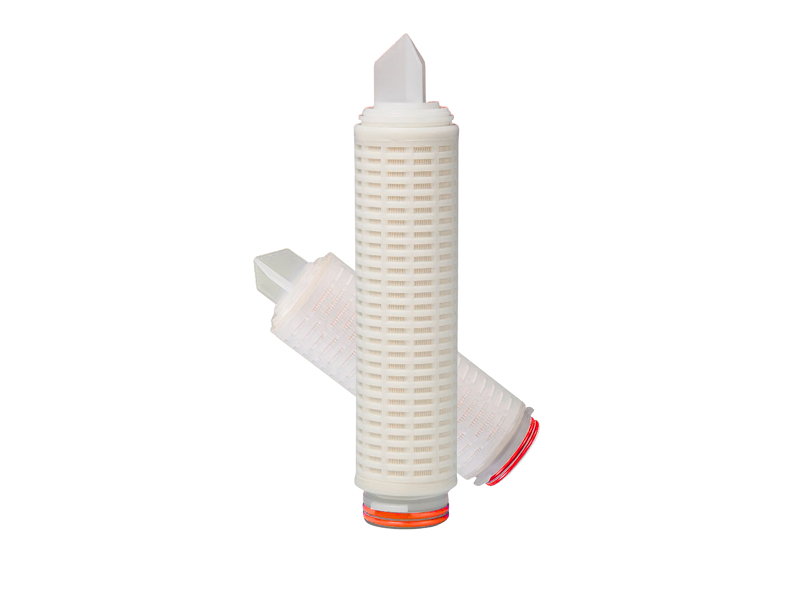

The OmniGuard™ series features an industry-standard configuration designed to fit directly into your existing sanitary housings. It is primarily supplied in the secure Code 7 format, which utilizes a dual 226 O-ring locking bayonet base and a pointed fin tip to prevent fluid bypass, but is also available in Code 3 and double-open-end styles.

• Effective Filtration Area: 0.58 square meters (6.2 square feet) per 10 inch module.
• Standard Lengths: 10, 20, 30, and 40 inches to scale with your facility’s pump capacities.
• O-Ring Options: FDA-compliant Silicone, EPDM, or Viton.
• Maximum Differential Pressure: 5.2 bar (75 psid) at 25°C, and 1.9 bar (27 psid) at an elevated operating temperature of 80°C.
• Recommended Change-out Pressure: 2.4 bar (35 psid) to maintain peak system efficiency and manage utility power costs.

---

Here are the answers to the most common questions plant engineers

Q:What makes PVDF the preferred choice for protein-rich or color-sensitive beverages?

The primary reason is its exceptionally low protein-binding profile. Materials like Nylon 66 or standard Polysulfone act like magnets for complex organic compounds, pulling proteins, color pigments, and delicate flavor notes out of the liquid matrix. PVDF is chemically inert and has minimal affinity for these molecules. Your beverage passes through the filter completely unaltered, preserving the exact color, body, and aroma of the product while preventing the filter from clogging prematurely.

Q: Does this membrane require alcohol pre-wetting before a production run?

No. While standard PVDF is hydrophobic (water-repelling), the OmniGuard™ series utilizes an inherently hydrophilic high-porosity PVDF membrane. It draws water and aqueous liquids into its pore structure instantly and uniformly. Your team can install the cartridges and start processing immediately, eliminating the time, labor, and chemical costs associated with alcohol pre-flushing.

Q: How is the sterile rating of the 0.22 micron cartridge validated?

Our 0.22-micron OmniGuard™ cartridges are true, certified sterilizing-grade elements. They are fully validated according to the international ASTM F838 standard. This means each batch is liquid-challenged to completely retain a minimum concentration of 10 7 colony- forming units (CFU) per square centimeter of Brevundimonas diminuta. This strict testing protocol guarantees an absolute biological barrier against spoilage bacteria, wild yeasts, and molds.

Q: Can the OmniGuard™ cartridge be integrity tested on-site?

Yes. Because it is a high-precision, absolute-rated membrane, your quality assurance team can independently verify its structural integrity right on the production floor. The cartridges fully support standard non-destructive testing methods, including Bubble Point and Forward Flow (Diffusion) integrity tests. This allows you to verify that the filter is properly sealed and undamaged before or after a critical production run.

Q: What are the temperature limits for cleaning and steam sanitization?

Thanks to its molecularly fused, thermally welded construction—completely free of glues, resins, or secondary binders—the OmniGuard™ cartridge exhibits excellent thermal resistance. It can comfortably withstand repeated hot water sanitization flushes and continuous in-line steam sterilization (SIP) or autoclave cycles at temperatures up to 134°C (273°F). To ensure maximum service life, we recommend bringing the system up to temperature and cooling it down gradually to avoid sudden thermal shock.

Q: When should we replace the filter elements?

For liquid processing loops, we recommend changing out the cartridges when they reach a differential pressure (ΔP) of 2.4 bar (35 psid). However, because PVDF resists protein blinding so effectively, you will notice a significantly lower pressure drop and a steadier flow rate over a longer period compared to standard alternative membranes, meaning fewer change-outs and reduced operational downtime.
