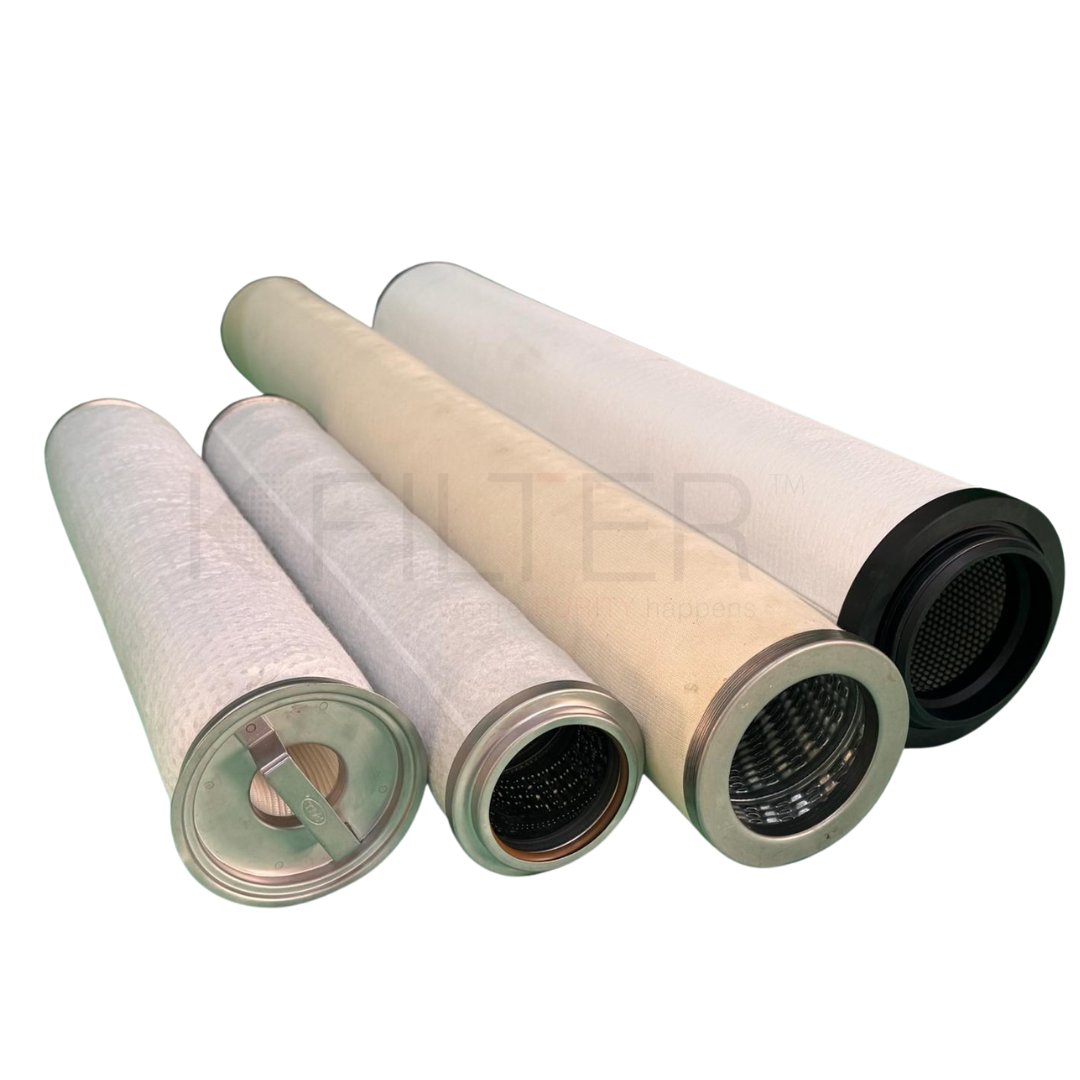

The Engineering of the Vestal P Series

The Vestal P Series is defined by its rugged construction and precision-layered media, optimized for maximum separation efficiency and minimum pressure drop (ΔP):

• Advanced Depth Separation Matrix: Utilizing numerous layers of high-density micro-fiberglass, our media is engineered to force liquid aerosols to collide and coalesce into larger droplets for easy drainage.
• 100% Cotton Outer Drainage Layer: Our specialized cotton outer wrap facilitates an outside-to-inside flow track, ensuring rapid liquid drainage and preventing “re-entrainment” of moisture back into the clean gas stream.
• High-Collapse Spiral Core: The inner filter core is a heavy-duty, locked spiral steel cage, providing extreme resistance to collapse and structural failure during high-pressure surges.
• Hydrocarbon & Temperature Resilience: Constructed with Bun-N gaskets and high-temperature resistant components, our coalescers maintain integrity across a wide range of hydrocarbon streams and thermal conditions.

Also We have different application Coalescer Filters

Vestal LL Series Liquid-to-Liquid Coalescer Filter

The Vestal LL Series liquid-to-liquid coalescer filter is a high-performance filtration device specifically designed for hydrocarbon and industrial liquid processing. It efficiently separates two immiscible liquid phases, such as:

• Water from hydrocarbon oil
• Hydrocarbon from water streams

These emulsions occur when tiny droplets of one liquid are dispersed within another. Because these micro-droplets are too small to separate through gravity alone, the Vestal Series coalescer forces the droplets to merge into larger droplets, enabling efficient separation and ensuring cleaner, high-quality fluid streams.

This system is ideal for applications where emulsion separation, process reliability, and equipment protection are critical.

---

Gas to Liquid Coalescer

Vestal GL Series Gas-to-Liquid Coalescer

The Vestal GL Series gas-to-liquid coalescer is a specialized filtration device designed to remove liquid contaminants from gas streams efficiently.

In industrial gas processing, the presence of liquid aerosols, condensates, and fine solids can compromise operational efficiency, reduce equipment life, and degrade product quality. To address these challenges, the Vestal GL Series employs high-performance coalescing cartridges that capture and coalesce tiny liquid droplets suspended in gas.

---

FAQ: Industrial Coalescer & Separator Technology

1. How does a coalescer differ from a standard particulate filter?

A standard filter only stops solids. A Coalescer performs a “double-duty”: it traps solid dust and rust, but its primary job is to merge tiny liquid droplets (aerosols) into larger drops that gravity can pull out of the stream. The Vestal P Seriesuses micro-fiberglass layers to ensure even the smallest 0.3-micron droplets are removed.

2. Why is the “Outside-to-Inside” flow track important?

In gas coalescing, the “Outside-to-Inside” flow allows the liquid to collect on the outer drainage layer and fall to the sump of the housing. This prevents the gas from “carrying” the liquid back into the system, ensuring drip-free performance at the outlet.

3. Can the Vestal P Series handle harsh coastal environments?

Absolutely. We have engineered these filters specifically for coastal power plants and offshore platforms. The combination of high-grade steel cores and salt-resistant media ensures that they do not degrade in humid, saline-rich air or fluid streams.

4. Is this a direct interchange for brands like Pall or PECO?

Yes. The Vestal P Series is designed with the same dimensions and micron-efficiency ratings as the world’s leading manufacturers. You can replace your existing imported cartridges with K Filter’s locally manufactured solutions without any modifications to your filter separators.

---
