RO Protect Cuno Micro klean Substitute Filters

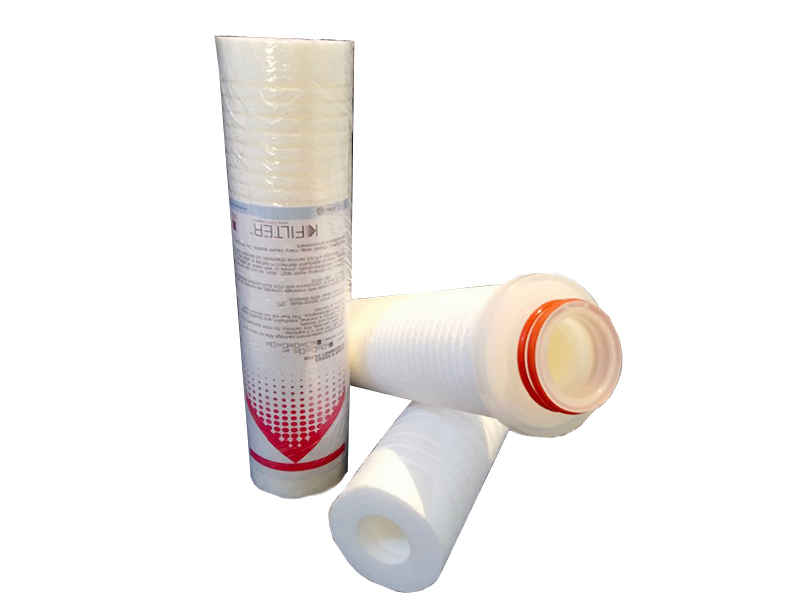

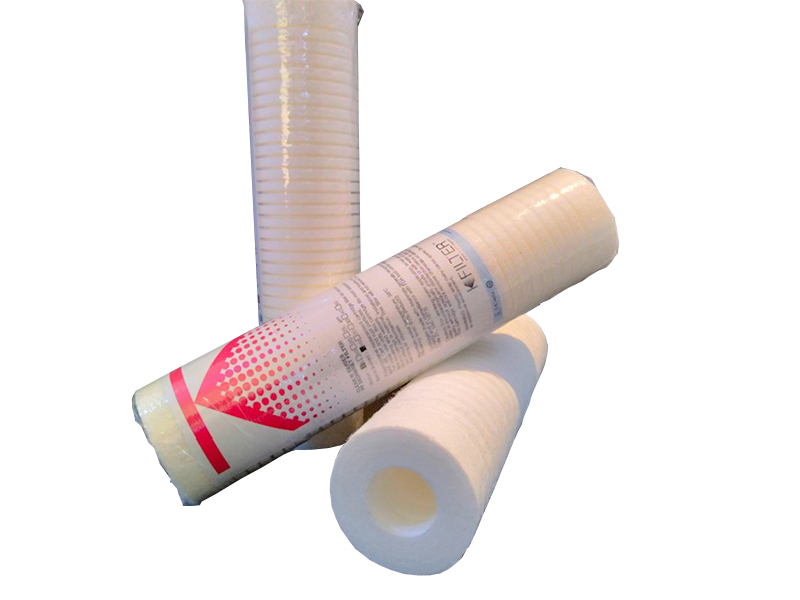

RO Protect Clean G Series
High-Flow Grooved Surface Replacement Filters
In high-demand industrial environments, maintaining a high flow rate without sacrificing particle retention is a constant engineering challenge. The K Filter RO Protect Clean G Series is a precision-engineered, grooved-surface melt-blown cartridge designed for High Dirt-Holding Capacity. for use in applications where petroleum oils and acid solution or high temperature rule out the use of polypropylene. In addition, it has the benefits , such as true gradient depth filtration, extremely low pressure losses, high removal ratings and high void volumes.Specifically developed as a high-performance international replacement (substitute filter) for Cuno Micro-Klean™ and other legacy filters, the G Series provides a seamless interchange for systems requiring maximum throughput and absolute reliability.
K Filter G Series: The Precision-Grooved Alternative to Cuno Micro-Klean™*
“We didn’t just build a substitute; we engineered an upgrade. By combining the classic grooved topography with our proprietary PLC-controlled melt-blown technology, the G Series delivers the high-flow throughput of a legacy filter with the modern purity of absolute-grade fibers.”
______________________________________________________________________________________________________________________________________________
The Grooved Surface Advantage: Engineered for Throughput
The “G Series” topography is designed to break the surface tension of high-flow streams:
Expanded Filtration Surface: The deep longitudinal grooves increase the effective surface area by over 50% compared to smooth cartridges. This prevents “surface blinding” and allows the filter to handle heavy contaminant loads.
Dual-Stage Gradient Density: Utilizing advanced PLC-controlled melt-blown technology, the G Series features a coarse outer “pre-filter” layer and a dense inner “final-filter” layer. This ensures depth filtration that captures particles throughout the entire media cross-section.
Coreless High-Strength Design: Our coreless construction maximizes the internal volume for fluid flow while maintaining structural integrity. This allows for easy disposal and high chemical compatibility.
95% Efficiency Precision: Calibrated for high-flow environments where a balance of efficiency and low pressure drop (ΔP) is critical. Available in absolute ratings from 0.1 µm to 50 µm.
Technical Interchange & Specifications
| Feature | RO Protect Clean G Series (Grooved) |
|---|---|
| Direct Replacement | Cuno Micro-Klean™* / Industrial Standard Spun |
| Micron Range | 0.1 µm to 50 µm |
| Surface Finish | Precision Machined Grooves |
| Material | 100% Pure Polyester (Spun/Melt-blown) |
| Efficiency | 95% High-Retention Efficiency |
| Structure | Coreless, Multi-layer Gradient Density |
| Configurations | DOE (Double Open End), 222/Fine, Code 7 |
______________________________________________________________________________________________________________________________________________
Global Industrial Applications
- Process Water Loops (USA/Europe): Ideal for high-volume cooling water and process fluid filtration.
- Pre-Filtration for RO Systems: Protecting downstream membranes by removing large-scale rust, grit, and pipe scale.
- Chemical & Solvent Filtration: High compatibility with aggressive process liquids and industrial chemical solutions.
- Oil & Gas (Middle East): Excellent for water injection and produced water filtration where high flow and high dirt loads are standard.
Our Key Features
- No Fiber Shedding,
- Graded Density Pore Structure
- Deep Groove-Bigger Filtration Area
- High flow rate
- Low pressure drops
- High dirt holding capacity
- Customized pore (micron) size Broad of chemical compatibility
Application
- Pre RO-Filtration of brackish water
- Ro pre filtration of seawater desalination
- Industrial water treatment systems
- Process water filtration
- Etching solutions Cleaning water for IC base
Technical Data
- Temperature rating: 1200C
- Filter media: Polyester
- Structure: Coreless filter cartridge
- Surface: Grooved
- Inst. Application temperature :1200C
- Max. working Pressure: 6bar Length: 10” ,20”.30”,40”50”
- Excellent chemical compatibility with petroleum oils and acid solutions.
Suggested Equivalent products
3M Micro-klean
Is it RO Protect Clean G Series equivalent 3M Micro-klean- yes
The RO Protect Clean G Series is specifically engineered as a high-performance international substitute for the 3M Cuno Micro-Klean line. While traditional Micro-Klean filters rely on resin-bonded or specific fiber designs, the G Series matches the exact dimensional standards and grooved surface topography.
The longitudinal grooves act as “superhighways” for water, significantly expanding the surface area (+50% increase).This prevents premature “blinding” (surface choking), making the RO Protect Clean G Series a direct drop-in replacement that offers cleaner, modern polymer construction, superior chemical resistance, and easier waste disposal.
Equivalency Overview: RO Protect Clean G Series vs. 3M Cuno Micro-Klean
| Feature / Specification | 3M Cuno Micro-Klean (Legacy Series) | RO Protect Clean G Series (Grooved) |
|---|---|---|
| Filtration Media | Typically Acrylic/Phenolic resin-bonded or standard spun matrix | Polyester/PP (Melt-Blown) |
| Surface Geometry | Grooved topography (designed for high throughput) | Precision-machined longitudinal surface grooves |
| Efficiency Rating | Nominal (graded density) | 95% High-Retention Efficiency (optimized for low ΔP) |
| Core Structure | Coreless or rigid inner support | Coreless, multi-layer gradient density matrix |
| Chemical Compatibility | Restricted by resin binders or specific fiber chemistry | Broad chemical/solvent compatibility (pure polypropylene) |
| Environmental Impact | Harder to dispose of (resin/composite materials) | 100% Incinerable, zero fiber shedding, coreless green disposal |
Frequently Asked Questions (FAQ)
Q1: Is the RO Protect Clean G Series a direct physical drop-in for 3M Cuno Micro-Klean housings?
A: Yes. The G Series is manufactured to match the exact length, inner/outer diameter specifications, and grooved exterior configuration of the legacy Cuno Micro-Klean cartridges, ensuring a seamless swap without system modifications.
Q2: Why does the G Series feature grooves, and how does it compare to a smooth filter?
A: The precision-machined grooves provide a massive boost to the effective surface area (roughly 50% larger than standard smooth melt-blown cartridges). In high-load or high-flow environments, smooth filters quickly form a cake layer on the exterior and choke off flow. The grooves create deep valleys that remain open longer, allowing water to penetrate inner layers even when heavily loaded with sand, rust, or hard scale.
Parker Fulflo® Probond™
Is it RO Protect Clean G Series equivalent Parker Fulflo® Probond™ – yes,
Frequently Asked Questions (FAQ)
Q1: Is the RO Protect Clean G Series a direct drop-in replacement for Parker ProBond cartridges?
A: Yes. The G Series is manufactured to standard industrial dimensions (such as outer diameter, inner diameter, and standard 10″, 20″, 30″, or 40″ lengths), allowing it to fit seamlessly into housings currently running Parker ProBond filters without requiring any equipment retrofits.
Q2: How does the G Series surface-groove design mimic the advantages of the ProBond spiral wrap?
A: Parker ProBond uses an outer pre-filter wrap to catch large agglomerates and prevent surface choking. The RO Protect Clean G Series accomplishes this via precision-machined longitudinal grooves. These grooves expand the outer surface area by roughly 50%, creating deep channels that keep fluids moving freely and extend filter service life even under heavy particulate loads.
Q3: What are the key advantages of switching from a resin-bonded ProBond filter to a pure polypropylene G Series?
- Broader Chemical Compatibility: Phenolic resin-bonded filters are generally restricted to a pH range of 5–9 and struggle with strong oxidizers. Pure polypropylene handles aggressive acids, bases, and industrial solvents with ease
- No Resin Breakdown: Over time or under fluctuating chemical exposures, resin matrices can experience binder softening. The thermal-bonded polypropylene structure of the G Series remains structurally stable.
- Silicone-Free & Cleaner Process Streams: Eliminates any potential trace organic contaminants linked to resin curing.
Equivalency Overview: RO Protect Clean G Series vs. Parker Fulflo® ProBond™
| Feature / Specification | Parker Fulflo® ProBond™ | RO Protect Clean G Series (Grooved) |
|---|---|---|
| Filtration Matrix | Phenolic resin-impregnated acrylic/polyester fiber blend | Polyester /PP(Melt-Blown) |
| Surface Geometry | Spiral outer wrap over a rigid matrix | Precision-machined longitudinal surface grooves |
| Rigidity / Collapse Strength | Rigid resin bond (withstands high ΔP surges) | Deep-layer thermal-bonded matrix (optimized void space) |
| Chemical Limitations | Restricted by phenolic resin (pH 5–9, poor against strong oxidizers) | Broad chemical and solvent resistance (pure polymer) |
| Media Migration Risk | Low, but relies on resin-bonded short/long staple fibers | Zero migration (thermally locked continuous microfibers) |
| Disposal / Environmental | Non-hazardous, incinerable (8,000 BTU/lb) | 100% Incinerable, coreless “green” construction |
Pall Hi-V Filter
RO Protect Clean G Series serves as a direct drop-in structural equivalent for standard industrial configurations. While Pall utilizes standard smooth cylinder profiles for its general melt-blown lines, the G Series introduces precision-machined longitudinal grooves. This grooved architecture increases effective surface area by roughly 50%, preventing surface blinding and reducing pressure drop (
ΔP) during heavy contaminant surges. It provides a reliable, cost-effective,and high-throughput alternative for demanding fluid systems.Equivalency Overview: RO Protect Clean G Series vs. Pall Hi-V / Melt Blown Series
| Feature / Specification | Pall Melt-Blown / Hi-V Series | RO Protect Clean G Series (Grooved) |
|---|---|---|
| Filter Media | 100% Pure Polypropylene (Continuous extruded fibers) | Polyester/PP (Melt-Blown) |
| Surface Topography | Smooth continuous melt-blown matrix | Precision-machined longitudinal surface grooves |
| Efficiency Rating | Graded efficiency options (nominal to 99.98%) | 95% High-Retention Efficiency (optimized for high-flow) |
| Core Construction | Coreless or rigid inner support options | Coreless, multi-layer gradient density matrix |
| Flow Dynamics | Standard cylindrical flow profile | Enhanced flow paths via exterior grooves (+50% surface area) |
| Chemical & Thermal Range | Broad chemical compatibility, pure polymer | Broad chemical/solvent compatibility, 100% incinerable |
Q1: Is the RO Protect Clean G Series directly interchangeable with Pall standard industrial filter housings?
A: Yes. The G Series matches standard industrial dimensions (outer diameter, inner diameter, and common lengths such as 10″, 20″, 30″, and 40″), fitting securely into housings designed for standard depth cartridges without modification.
Q2: How does the G Series grooved design differ from standard smooth melt-blown cartridges like Pall’s?
A: Standard melt-blown cartridges feature a smooth exterior cylinder that can quickly form a cake layer on the surface when handling heavy particulate loads, restricting flow. The G Series features longitudinal surface grooves that act as fluid “superhighways”. These channels keep fluid moving freely through the lower valleys of the filter even when the peaks are heavily loaded with rust, grit, or scale.
Q3: Does the G Series maintain the same fiber integrity and purity as high-end industrial filters?
A: Yes. Both series rely on 100% pure virgin polypropylene without chemical binders, resins, or wetting agents. This guarantees zero fiber migration, excellent chemical resistance, and safe usage in sensitive water treatment and process loops
_________________________________________________________________________________________________________________________
FAQ: RO Protect Clean G Series (Grooved)
1. Is the G Series a direct interchange for Cuno Micro-Klean?
Yes. The RO Protect Clean G Series is designed with the same dimensional standards and grooved topography as the Cuno Micro-Klean™* series. It serves as a superior “drop-in” replacement, often providing higher dirt-holding capacity due to our advanced PLC-controlled fiber density.
2. Why are “Grooves” better than a smooth surface?
In high-flow applications, a smooth filter can quickly form a “cake” of dirt on the surface, which stops the flow of water (blinding). The grooves create deep valleys that stay open longer, allowing water to penetrate the inner layers even when the outer surface is heavily loaded with contaminants.
3. Does a “Coreless” design mean the filter is weak?
Not at all. Our melt-blown spun technology thermally bonds the polypropylene fibers into a rigid, self-supporting structure. The coreless design is actually an advantage—it provides a larger internal flow path and makes the cartridge 100% incinerable for easy waste management in Europe and North America.
4. Will fibers release during pressure spikes?
No. A major advantage of the K Filter G Series is its thermal bonding. Unlike cheaper string-wound or resin filters that might “shed,” our polypropylene fibers are locked in place. This ensures no fiber migration occurs even during variations in flow or system pressure.
5. Can I customize the end connections?
Absolutely. While the Double Open End (DOE) is the most common for grooved filters, we provide 222 with fine/flat or Code 7 connections to ensure compatibility with all international filter housing brands
Comparison with other filter Cartridge
The Surface Geometry Matrix: G Series vs. O Series vs. Standard
| Feature | G Series (Grooved) | O Series (Orange Peel) | Standard (Smooth) |
|---|---|---|---|
| Primary Goal | High Flow / Throughput | Bio-Fouling / Sticky Solids | Precision / Final Polish |
| Surface Tech | Precision Machined Channels | Wrinkled “Brain” Texture | High-Density Smooth Fiber |
| Legacy Interchange | Cuno Micro-Klean™ | High-Surface Specialization | Standard Spun/Melt-blown |
| Surface Area | ⭐⭐⭐⭐ (+50% Increase) | ⭐⭐⭐⭐⭐ (+60% Increase) | ⭐⭐ (Baseline) |
| Dirt Type | Hard Scale, Sand, Rust | Algae, Slime, Biologicals | Micro-fine Particulates |
| Efficiency | 95% High Retention | 99.98% Absolute | 99.98% Absolute |
| Flow Resistance | Lowest (Best for high velocity) | Moderate | Standard |
| Structure | Coreless Rigidity | 2-Layer Depth | 3-Layer Depth |
_________________________________________________________________________________________________________________________
Why Choose the G Series (Grooved)?
“The High-Volume Powerhouse”
- The “Cuno” Switch: Use this when a customer is currently using Cuno Micro-Klean and wants a more modern, fiber-free, and cost-effective alternative.
- Reducing Pressure Drop: The longitudinal grooves act like “superhighways” for water, allowing high volumes to pass through even when the filter is 70% loaded.
- Heavy Scale Loading: Best for pipes with heavy “Flake” rust or mineral scale that would usually “blind” a smooth filter instantly.
2. Why Choose the O Series (Orange Peel)?
“The Biological Shield”
- Membrane Protection: This is the “Premium” choice for Desalination (RO). The wrinkled surface is specifically designed to trap “sticky” biological matter (algae/bacteria) that would otherwise slide through a grooved filter or clog a smooth one.
- Absolute Purity: Unlike the G Series (95%), the O Series offers 99.98% Absolute efficiency. It is for clients who cannot compromise on downstream water quality.
3. Why Choose the Standard Series (Smooth)?
“The Precision Polisher”
- Multi-Stage Refinement: Our standard series uses three distinct layers of density. It is the best choice for the “Final Stage” of filtration in Pharmaceutical, Food & Beverage, or Microelectronics where “Absolute” retention of the smallest particles is the only goal.
*Brand name is used only for reference
