“Precision Engineering for the Closed-Loop Steam Cycle”

“The steam generation cycle is the heart of power production. As high-pressure steam expands through the turbine stages and transitions into the condenser, it recovers as high-value condensate. At this critical phase, any entrained ‘crud’ or corrosion products can devastate downstream boiler tubes and turbine blades. The K Filter Purewound P Series is engineered to intercept these contaminants at the point of recovery, ensuring that your recirculated feedwater meets the stringent chemistry standards required for sub-critical and super-critical steam generators.”

True Depth Filtration: A multi-layered matrix that traps microscopic particulates—including iron sulfide, scale, and corrosion products—deep within the fiber structure.

70-Inch Single-Length Integrity: Our extra-high 70-inch cartridges eliminate the need for stacked filters and couplers, removing potential bypass points and ensuring a perfect seal in high-flow housings.

Extreme Thermal Resilience: While standard filters fail under heat, our specialized P Series can withstand operating temperatures up to 401°C, making them suitable for the most aggressive thermal spikes.

Hydrocarbon Capture: Effectively removes condensed liquids, lube oils, and BTEX contaminants that can cause foaming and glycol degradation.

Advanced Contaminant Removal Technology

Our systems integrate advanced Ion Exchange Technology and high-efficiency pre-filtration to target the specific “enemies” of the steam cycle:

• Dissolved Minerals: Removal of trace sodium and salts to prevent ionic contamination.
• Silica Oxides: Eliminating silica to prevent glass-like deposits on turbine blades.
• Particulate ‘Crud’: Capturing iron oxide and copper particles (corrosion products) before they reach the boiler.
• Suspended Matter: Ensuring a crystal-clear effluent for reuse in the feedwater loop.

The Critical Need for Condensate Purification

The ultimate goal of a condensate polishing system is the total removal of soluble and suspended impurities. Without this rigorous purification, contaminants infiltrate the high-pressure boilers, steam generators, and reactors, leading to:

• Flow-Accelerated Corrosion (FAC): Caused by particulate “crud.”
• Turbine Fouling: Resulting from silica and sodium carryover.
• System Inefficiency: Scaling that reduces thermal heat transfer.

---

Critical Protection for Power Infrastructure

K Filter Engineering designs these cartridges to act as a “Shield” for your plant:

1. Prevents Corrosion & Scaling: By removing iron oxides (crud), we stop the buildup that leads to localized overheating and tube failure in boilers.

• Protects High-Value Components: Ensures that reboilers, heat exchangers, pumps, and contactors remain free of fouling.

• Optimizes Glycol & Amine Loops: Prevents the degradation of expensive chemical additives by removing solid and liquid impurities

Technical Comparison: Condensate Polishing

Feature	Purewound Condensate P Series	Standard Wound Filter
Max Height	Up to 70 Inches	Typically 10″ – 40″
Max Temperature	Up to 401°C	60°C – 80°C
Contaminant Focus	Iron Oxide (Crud), Oils, BTEX	General Sand & Silt
Media Migration	Extremely Low	Moderate to High
Structural Integrity	Reinforced Spiral Core (High Pressure)	Standard Core

______________________________________________________________________________________________________________________________________________

______________________________________________________________________________________________________________________________________________

FAQ: Purewound Condensate Polishing (P Series)

1. Why is a 70-inch height necessary for Nuclear and Thermal plants?

Large-scale power stations move massive volumes of water. By using a single-piece 70-inch cartridge, you maximize surface area while minimizing the number of seals. This reduces the risk of “bypass”—where dirty water escapes through a seal—protecting your turbine from abrasive particles.

2. How can a Polypropylene yarn withstand 401°C?

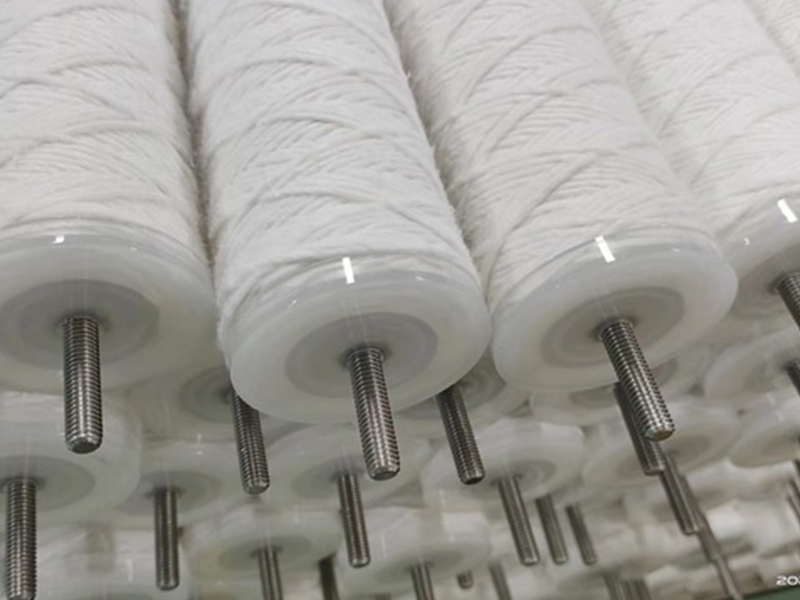

Our Condensate P Series utilizes a specialized, high-density 100% pure polypropylene yarn wound onto a reinforced Stainless Steel spiral core. While standard PP has lower limits, our proprietary “P-Series” thermal-lock winding allows it to survive extreme temperature surges and high-viscosity “drag” in heavy industrial loops.

3. What is “Crud” and why is it dangerous?

“Crud” is a power-industry term for corrosion products (mainly iron and copper oxides). If these reach the boiler or turbine, they cause scaling and pitting. Our True Depth Filtration is specifically calibrated to capture these sub-micron metal oxides before they deposit on your equipment.

4. Can these filters handle Lube Oil or Hydrocarbons?

Yes. The P Series is designed with a high affinity for hydrocarbons. It can capture condensed liquids and BTEX (Benzene, Toluene, Ethylbenzene, and Xylene), preventing foaming in your steam cycle and protecting downstream chemical contactors.

5. Is this filter cost-effective for year-round operation?

Absolutely. Due to the high dirt-holding capacity and robust construction, the Purewound P Series offers a significantly longer service life than standard felt or pleated filters. In the high-labor markets of the USA and Europe, reducing the number of filter change-outs results in massive annual savings.

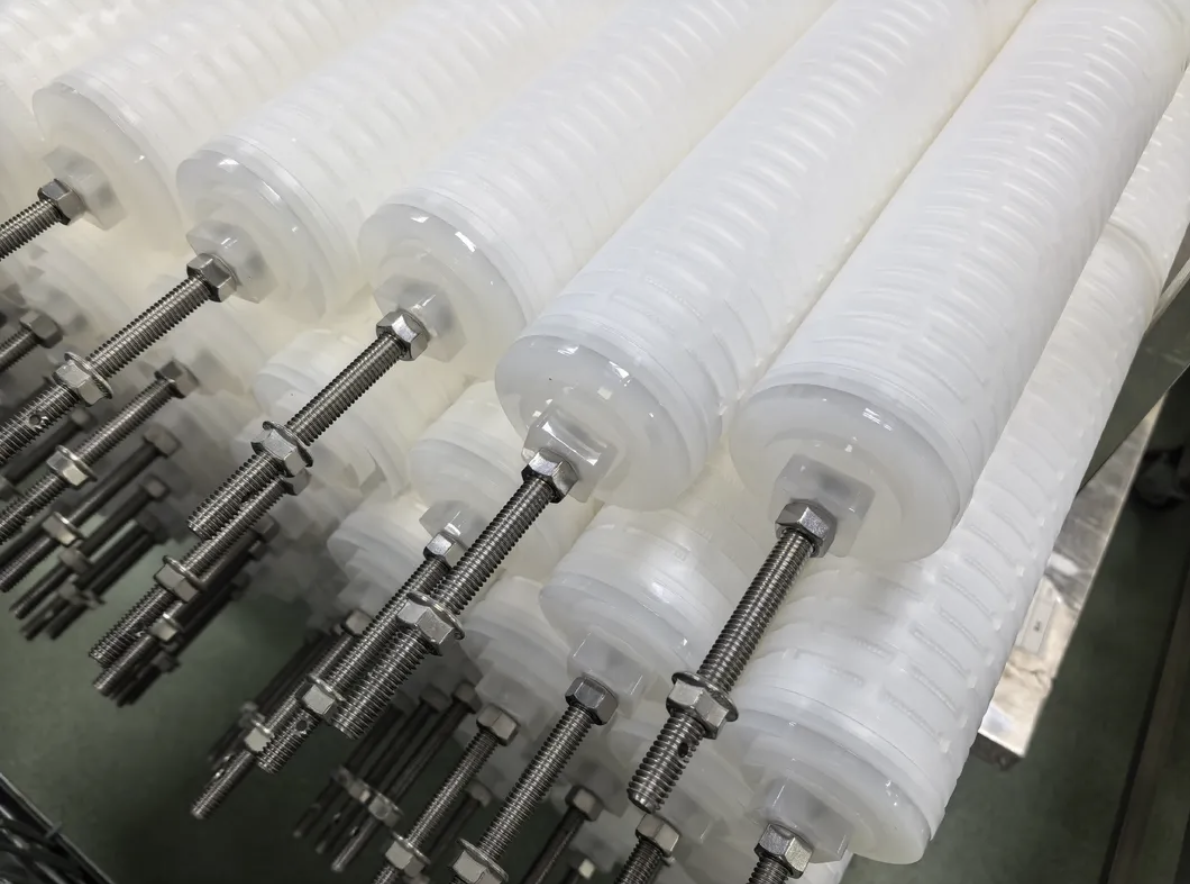

Condensate P series filters available in pleated Models?

Yes

1. Can the Pleated model handle the same 401°C temperature?

Yes. By utilizing specialized high-temperature synthetic media and Stainless Steel support structures, the Pleated P Series maintains structural integrity at extreme thermal peaks. It is designed to handle the “Thermal Shock” often found in power plant steam-start cycles.

2. Is the 70-inch length available in Pleated?

Absolutely. We manufacture the Pleated P Series in continuous lengths up to 70 inches. This ensures that high-flow power plant housings can benefit from the increased surface area without the risk of bypass associated with stacked pleated elements.

3. Does it help with “Iron Oxide” (Crud) removal?

Yes. In fact, the pleated structure is superior for capturing “Fine Crud.” While wound filters are great for large flakes of scale, the Pleated P Series traps the microscopic metallic dust that can bypass other filters and cause “pitting” in boiler tubes.

4. Is it cost-effective?

While the initial cost of a pleated element is higher than a wound cartridge, the Total Cost of Ownership (TCO) is often lower. Because it has more surface area, you change the filters less often, reducing labor costs and hazardous waste disposal in Nuclear and Thermal facilities
