50 inch Cotton Wound Filter Cartridge

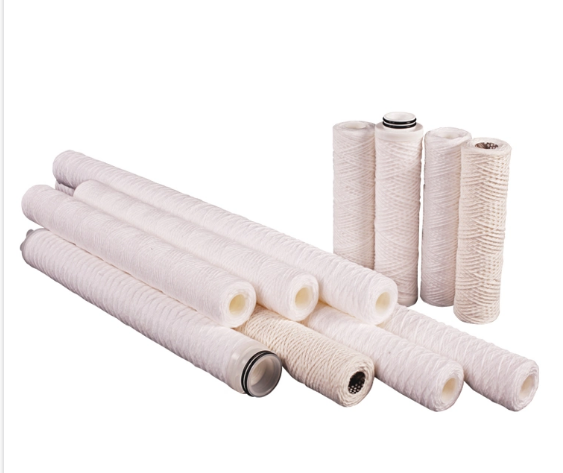

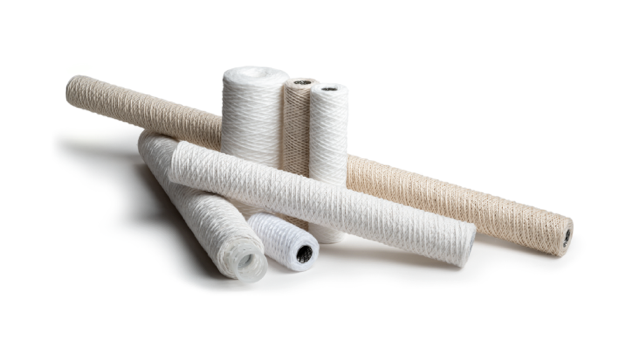

Purewound Cotton N Series: 40″ & 50″ Extra-Long Cotton String Wound Cartridges
In large-scale industrial filtration, efficiency is measured by uptime. The K Filter Purewound Cotton N Series (40-inch and 50-inch) is engineered for high-volume systems that demand high dirt-holding capacity and thermal resilience. Made from natural bleached cotton yarn, these extra-long cartridges provide a “True Depth” filtration barrier, effectively removing sediment from water and high-viscosity process fluids
Engineered for High-Volume & Viscous Fluids
Unlike standard 10-inch filters, our 40″ and 50″ Purewound Cotton N Series are designed to reduce the “sealing points” in your filter housing, ensuring a more reliable, bypass-free operation
______________________________________________________________________________________________________________________________________________
“Eliminating Bypass through Seamless Engineering”
“In high-volume process streams, every connection is a potential risk. Unlike standard 10-inch filters that require stacking and couplers, our 40″ and 50″ Purewound Cotton N Series are engineered as single-length, high-integrity units. By eliminating multiple ‘sealing points’ within your filter housing, we drastically reduce the risk of bypass and mechanical failure. This seamless design ensures 100% of your fluid passes through the depth matrix, providing a more reliable, consistent, and bypass-free operation for your most critical assets.”
Natural Bleached Cotton: High-purity fibers ensure zero leaching and extremely low media migration, making them safe for sensitive process water.
Thermal Performance: Withstands continuous operating temperatures up to 121°C (250°F), far exceeding the limits of standard polypropylene.
Viscosity Mastery: The specialized spiral core and winding pattern allow high-viscosity fluids (oils, resins, and syrups) to pass through with a lower pressure drop.
Massive Dirt Capacity: Graded density construction captures sand, silt, rust, and scale deep within the fiber matrix.
Technical Superiority: The Spiral Core Advantage
A 50-inch filter cartridge faces immense physical stress. The Purewound cotton N Series utilizes a reinforced spiral core to ensure:
No Core Collapse: Maintains structural integrity under high differential pressure.
Uniform Flow: The spiral design optimizes fluid distribution across the entire length of the 50″ cartridge.
Metallurgy Options: Available with Stainless Steel (304/316) or Tin-Plated cores to match your chemical environment in the USA, Europe, or the Middle East.
______________________________________________________________________________________________________________________________________________
Targeted Industrial Applications
| Sector | Application | Why the 40″/50″ N Series? |
|---|---|---|
| Petrochemical (Middle East) | Amine & Glycol Loops. | 121°C temperature rating and viscous fluid compatibility. |
| Power Generation (USA/Europe) | Condensate Polishing. | Extra-long length reduces change-out labor in large multi-round housings. |
| Oil & Gas | Produced Water & Brine. | High reduction of sand and scale to protect downstream equipment. |
| Manufacturing | High-Temp Process Water. | Bleached cotton ensures no organic contaminants enter the clean stream. |
Our Key Features
- Designed low pressure drops
- High flow rate
- 100% free from resin binders, lubricants, antistatic and release agents
- Low media migration
- Filter media Yarn compliance with FDA
- Broad chemical and temperature capability
- Long life span
- Fit all type industrial vessel
Application
- Pre – RO Filtration
- Oil and water separation
- Wastewater Treatment
- Electroplating
- Power Plant
- water treatment
- Chemicals and Pharmaceuticals
- Suitable for compressed air and gas
Technical Data
- Filter Inner core: Stainless steel 304
- Filter media yarn: Bleach Cotton
- Grade: Food Grade/Non food grade
- Max. Temperatuer: 1210C
- Micron rating: 0.5 to 150 micron
- End cap option: Double end open, 222 with fin,222 with flat, 226 with fin,226 with fin ( code 7) Length: 10”,20”,30”,40”50”,60” and 70”
______________________________________________________________________________________________________________________________________________
Frequently Asking Questions: Purewound Cotton N Series (40″ & 50″)
1. Why use a 40″ or 50″ cartridge instead of stacking smaller ones?
Stacking 10″ filters requires connectors or “couplers,” which are potential points of bypass. A single-length 50″ Purewound cotton N Series cartridge provides a seamless filtration surface, ensuring 100% of your fluid passes through the media.
2. Can these filters handle “Thick” or Viscous liquids?
Yes. The N Series winding pattern is specifically optimized for high-viscosity fluids. The natural cotton fibers have a unique surface friction that helps trap “sticky” particles while allowing the carrier fluid to pass through at higher flow rates.
3. What is the benefit of “Bleached” Cotton?
Standard “raw” cotton contains natural oils and waxes. Bleached cotton is treated to remove these impurities, ensuring the filter does not foam or leach organic matter into your ultra-pure water or chemical stream.
4. Is the 121°C rating safe for steam applications?
The N Series is rated for liquids up to 121°C. For steam or dry heat applications exceeding this, we recommend moving to our Purewound High-Temp Series on a Stainless Steel core.
5. Are these cartridges cost-effective?
Absolutely. By providing 2–4 times the surface area of shorter filters, you reduce the frequency of maintenance. In high-labor markets like the USA and Europe, reducing change-out frequency significantly lowers your total operational cost.
