Duomax Thermal™ Series Steam Strainers: Right Angled Steam Strainers for High- Velocity Power Piping
Operating a high-pressure steam loop or updating an aging power generation block leaves no room for mechanical vulnerability. Superheated steam moves at immense velocities, carrying high kinetic energy. When pipe scale, rogue debris, or startup slag travels down these high-energy lines, it can cause immediate, catastrophic damage to downstream steam turbines, control valves, and pressure-regulating stations.
To give utility engineers and plant designers a more robust, aerodynamically stable defense mechanism, we have introduced our new product range: the Duomax Thermal™ Series Steam Strainer.
Specifically engineered to withstand thermal shock, rapid expansion, and high velocity, this right-angled fabricated series provides heavy-duty filtration where traditional inline cast strainers fall short.
______________________________________________________________________________________________________________________________________________
Smart 90-Degree Elbow Replacement and Spatial Efficiency
The defining structural characteristic of the Duomax Thermal™ Series Steam Strainers is its right-angled geometry. Instead of forcing you to find extra horizontal space in a crowded piping schematic, this design allows you to install the strainer directly into a corner layout.
- Replaces a Standard 90-Degree Elbow: The strainer functions simultaneously as a heavy-duty filter and a structural directional change, saving you the cost, space, and welding time of an extra pipe fitting.
- Streamlined Retrofits and Modernizations: When you are upgrading or expanding an existing power block, footprint constraints are common. The space-saving service room required for this series makes it straightforward to drop into tight brownfield retrofits.
- Vertical and Horizontal Layout Flexibility: The physical installation orientation can be adapted to match your specific piping axis, keeping maintenance accessibility completely practical.
Axial Inlet Flow and Advanced Internal Protection
Standard inline filters often suffer from high wear because the incoming fluid stream hits the front face of the mesh element with full force. Over time, this concentrated impact causes localized fatigue, mesh erosion, and tearing.
The Duomax Thermal™ Series Steam Strainers eliminates high-impact hotspots through smart internal flow management:

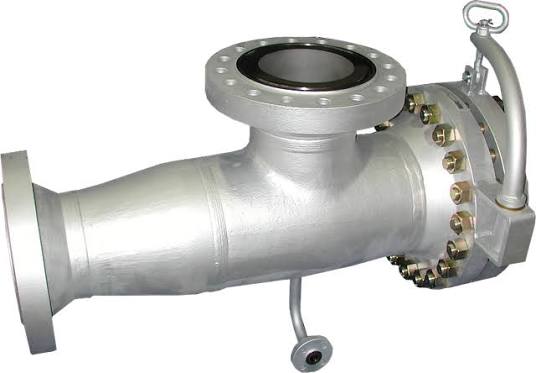

- Axial Flow Pathing: The housing is constructed from a specialized structural T-piece combined with a concentric reducer. Because the steam enters along the axial centerline of the cylindrical filter insert, the initial flow impulse is distributed evenly across the entire surface area rather than hitting a single point.
- No Cross-Sectional Narrowing: The internal annular space and the 90-degree deflection zone are designed to maintain full volumetric capacity. Steam flows through smoothly without encountering sudden chokepoints or restrictive internal flow guides.
- Gap-Free Top-Load Sealing: The cylindrical sieve is fitted securely from the top coverside. This top-loading configuration allows for a completely tight, gap-free mechanical seal, guaranteeing that zero particulates bypass the mesh liner.
Massive Surface Area and Extreme Low-Pressure Drops
In steam turbine operation, any drop in pressure translates directly to lost efficiency and lower power output. The simple, unrestrictive layout of the Duomax Thermal™ Series Steam Strainers prioritizes low resistance.
By utilizing an elongated cylindrical insert, this series (Duomax Thermal™ Series Steam Strainers) achieves an exceptionally large open filtration area:
- Up to 5 Times Pipe Cross-Section: The free filter surface area can be built up to five times larger than the cross-sectional area of the inlet nozzle.
- High Structural Burst Protection: This massive surface area means the initial pressure drop remains incredibly low, even when the steam travels at peak operating velocities. Furthermore, the robust perforated core provides excellent resistance against sudden pressure surges, preventing element collapse under high- load conditions.
Full Compliance with Power Plant Quality Standards
We build the Duomax Thermal™ Series Steam Strainers to meet the rigorous safety and material documentation criteria demanded by the power generation sector. Every unit we fabricate is backed by comprehensive engineering compliance:
- Design & Strength Calculations: Full structural calculations are performed based on your specific temperature, pressure, and flow parameters.
- Material Traceability & Certificates: Every component is traceable to its source mill with full documentation.
- Qualified Welding Practices: All pressure-retaining welds are executed by certified technicians under strict welding procedure specifications.
- Non-Destructive Testing (NDT): Independent, expert non-destructive testing including radiographic, ultrasonic, or dye-penetrant testing—is executed to guarantee absolute structural integrity prior to shipment.
Technical Specifications Summary
| Feature | Duomax Thermal™ Series Steam Strainers Standard Range |
|---|---|
| Primary Application | High-pressure power plant steam, utility lines, and thermal loops |
| Geometry Profile | Right-angled (90 0 ) elbow configuration with axial inlet flow |
| Filter Surface Area | Up to 5× the internal cross-sectional area of the pipe run |
| Internal Dynamics | Unrestrictive annular space with zero cross-sectional narrowing |
| Quality Verification | Full NDT testing, certified structural calculations, and material traceability |
Secure Your High-Temperature Steam Processes
Maintaining high plant availability requires filtration hardware that stands up to severe operating conditions. The Duomax Thermal™ Series Steam Strainers combines space-saving corner geometry with massive surface area to keep your steam lines clear and your turbines safe. If you are planning an upcoming power plant expansion, facility renovation, or turbine protection project, let our technical engineering team support your design. Contact us today to receive precise pressure drop calculations and a tailored quote for your specific thermal parameters.
Frequently Asked Questions (FAQ)
1.Why use a right-angled strainer instead of a standard inline Y-strainer for steam applications?
In power plants and high-pressure steam facilities, space is often highly restricted. The right-angled design allows you to completely eliminate a standard 90 0 elbow in your piping layout, using the strainer body itself to change the direction of the fluid. This cuts down on fabrication costs, saves physical footprint, and provides an accessible, space-saving service area for maintenance crews that wouldn’t be possible with a long, protruding inline Y-pattern housing.
2.How does the axial inlet protect the internal filter mesh from tearing?
In standard inline filters, high-velocity steam bangs directly into the side or front profile of the filter screen, causing rapid localized erosion, vibration, and eventual
mechanical failure. The Duomax Thermal™ Series Steam Strainers utilizes an axial inlet where the steam enters perfectly parallel to the centerline of the cylindrical basket. This spreads the initial velocity and pressure impulse evenly along the length of the cylinder rather than creating a high-impact hot spot, significantly extending the life of the mesh.
3.What is the advantage of a filter area that is 5 times the pipe cross-section?
Superheated steam moves at extremely high velocities. If a filter restricts that path even slightly, it causes an immediate drop in pressure, which reduces the thermodynamic efficiency of downstream steam turbines. By expanding the free surface area up to 5 times the internal cross-section of the inlet pipe, the steam passes through with almost zero resistance. This ensures excellent flow rates when clean and allows the strainer to capture a large volume of pipeline scale before needing to be opened for servicing.
4.How does the top-loading lid design prevent steam from bypassing the filter?
A completely gap-free seal is vital because even tiny particles can severely damage high-speed turbine blades if they escape. The cylindrical sieve insert is fitted and compressed directly from the lid/cover side. This allows maintenance teams to seat the element with precise mechanical pressure against the internal sealing shoulders. This top-down loading method ensures that the basket remains perfectly rigid and centered, leaving zero gaps for unfiltered steam to bypass the element.
5.What documentation and testing certifications are provided with this series?
Because this series (Duomax Thermal™ Series Steam Strainers) is engineered specifically for the strict safety demands of power plants, we provide a comprehensive quality tracking package. Every unit (Duomax Thermal™ Series Steam Strainers) comes with complete material traceability mill certificates, certified structural and thickness calculations based on your operating temperatures, and welding qualifications for our technicians. Additionally, all pressure-retaining components undergo expert non- destructive testing (NDT), such as radiographic, ultrasonic, or dye-penetrant testing, to guarantee absolute safety before installation.
