The Definitive Guard for RO Pre-Treatment

Our Purewound cartridges are designed to extend the life of your downstream membranes by providing an absolute barrier against physical contaminants:

True Depth Filtration: A multi-layered, graded-density matrix that traps sediment throughout the entire body of the cartridge, not just on the surface.

Massive Dirt-Holding Capacity: Optimized for high-silt and high-scale environments common in Middle Eastern desalination and US municipal water plants.

60-Inch “Single-Length” Advantage: We manufacture single-unit 60-inch cartridges to eliminate the need for connectors and couplers, ensuring a bypass-free seal in high-flow housings.

FDA-Compliant Purity: 100% pure polypropylene yarn with extremely low media migration, ensuring no surfactants or binders leach into your clean water.

Critical Applications

RO Pre-Treatment: Protecting membranes from fouling in Desalination and Brackish water systems.

Food & Beverage (Europe/USA): Ingredient water filtration, juices, and syrups requiring FDA-certified contact materials.

Chemical Processing: Filtration of aggressive acids and bases at moderate temperatures.

Viscous Fluid Management: Handling oils, lubricants, and high-density fluids where standard filters cause excessive pressure drops.

Technical Performance for Global Industry

Feature	Purewound Ultra (PP) Polypropylene Series
Material	100% Virgin FDA-Grade Polypropylene

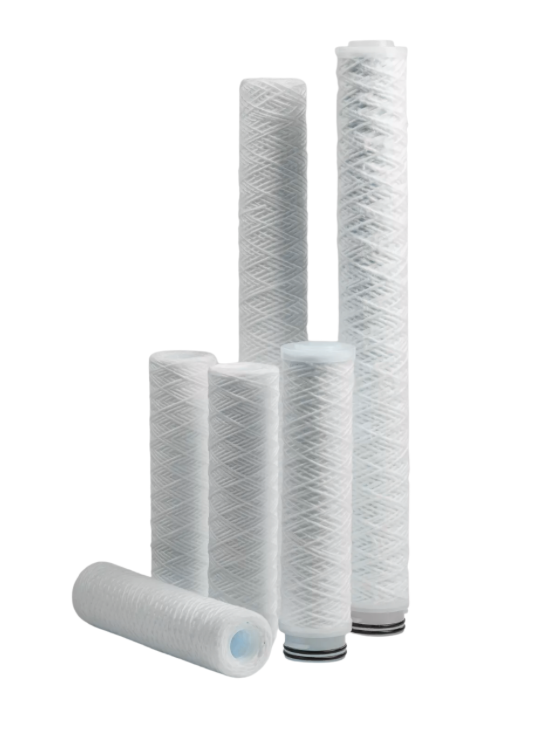

Length Options	20″, 30″, 40″, 50″, and High-Flow 60″
Max Temperature	Up to 70°C (158°F)
Core Structure	High-strength Spiral Core (PP or Stainless Steel)
Chemical Resistance	Excellent (Acids, Alkalis, and many solvents)
Particle Removal	Sand, Silt, Rust, Dirt, and Scale

______________________________________________________________________________________________________________________________________________

FAQ: Purewound Ultra Polypropylene Filter Cartridges

1. Why is the 60-inch length better for high-flow systems?

In large RO systems, using several 10-inch or 20-inch filters stacked together creates multiple “sealing points.” Each point is a risk for bypass. Our 60-inch Purewound cartridge is a single, continuous unit that ensures a perfect seal, maximum structural integrity, and faster change-out times.

2. Is the Polypropylene “Food-Grade”?

Yes. K Filter uses 100% FDA-grade virgin polypropylene yarn. It is free from binders, resins, and lubricants, making it safe for food and beverage contact in compliance with US and European regulations.

3. Can these filters handle viscous chemicals?

Absolutely. The specialized winding pattern of the Purewound series creates a high-porosity matrix that allows high-viscosity fluids to pass through with a low initial pressure drop, while still maintaining high retention of “hard” particles like rust and scale.

4. How does the 70°C temperature limit affect performance?

Polypropylene is ideal for standard process water and many chemicals up to 70°C. If your process requires temperatures above this (e.g., hot oil or steam), we recommend upgrading to our Purewound Cotton or Stainless Steel series.

5. Will these filters help reduce my RO membrane cleaning frequency?

Yes. By providing a high reduction of silt and micro-sediment, the Purewound series prevents “silt density index” (SDI) spikes, which are the primary cause of membrane fouling. This leads to longer membrane life and lower operational costs.

______________________________________________________________________________________________________________________________________________

Is it suitable for power plant?

The short answer is yes, but with one critical distinction: it depends on where in the power plant you use it.

In the Middle East, USA, and Europe, power plants have two main water circuits: Cooling/Raw Water (Lower Temp) and Condensate/Boiler Water (High Temp). Your choice of material (Polypropylene vs. Cotton) is determined by the temperature of these circuits.

1. Low-Temp Applications (Use Polypropylene)

Where: RO Pre-treatment, Desalination Intake, and Raw Water Makeup.

Suitability: The Purewound Polypropylene Series is ideal here.

Why: It is chemically resistant and highly effective at removing the “big three” power plant killers: Sand, Silt, and Scale. Since these water sources are usually below 70°C, Polypropylene is the most cost-effective “bodyguard” for your expensive RO membranes.

2. High-Temp Applications (Use Purewound Cotton/N-Series)

Where: Condensate Polishing Units (CPU), Boiler Feedwater, and Steam Condensate.

Suitability: Use the Purewound Cotton N-Series (with Stainless Steel cores).

Why: Condensate lines often run between 80°C and 120°C. Standard Polypropylene would soften or fail, but our specialized Cotton N-Series handles up to 121°C. It is the industry standard for capturing “crud” (iron oxides and copper) that can foul turbines and boiler tubes.

Comparison for Power Plant Engineers

Application	Recommended K Filter	Why?
RO Pre-Treatment	Purewound Polypropylene	FDA-grade purity; prevents membrane fouling from silt.
Condensate Polishing	Purewound Cotton (N-Series)	Withstands 121°C; captures metal oxides (crud).
Cooling Tower Water	40″ – 60″ High-Flow Poly	Handles massive water volumes with fewer change-outs.
Lube Oil Filtration	Purewound Cotton	Natural cotton handles high-viscosity oils and heat.

______________________________________________________________________________________________________________________________________________

FAQ for Power Plant Procurement

1. Can I use the Polypropylene version for Condensate Polishing?

A: Only if the temperature is strictly below 70°C. For most power plants, the condensate is hotter, so we recommend the Purewound Cotton with a Stainless Steel core for maximum safety and structural integrity.

2. How does the 60-inch length help my ROI?

A: Standard 10-inch filters require more labor to change and more “seals” that can leak. A 60-inch K Filter allows for 6x more filtration area in one single piece, meaning faster maintenance and a 100% bypass-free guarantee.

3. Is it resistant to “Crud” (Iron Oxide)?

A: Yes. The “True Depth” winding of our Purewound series is specifically designed to trap sub-micron iron and copper particles (crud) that are common in power plant steam loops.

---
