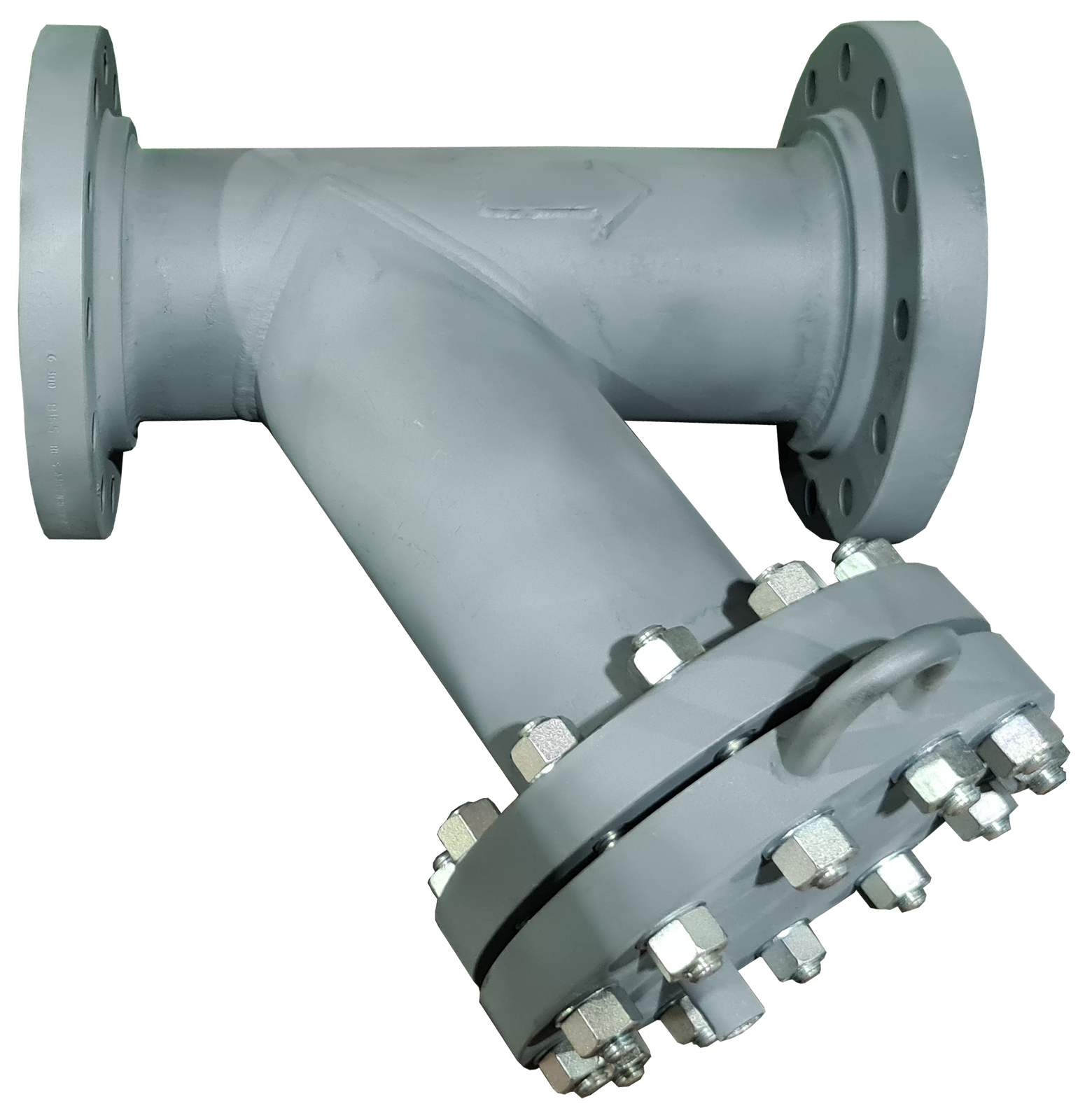

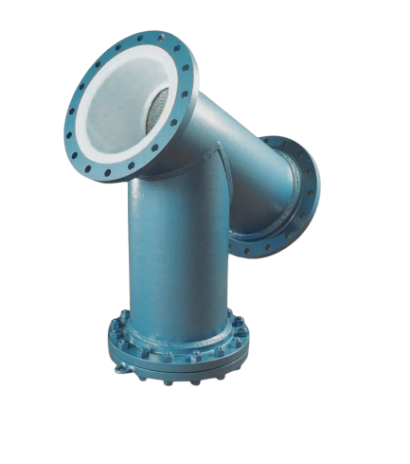

The Advantages of Welded Construction over Cast Designs

Choosing a fabricated, welded Y-strainer over a traditional cast model provides immediate mechanical benefits, particularly in high-pressure or high-temperature lines.

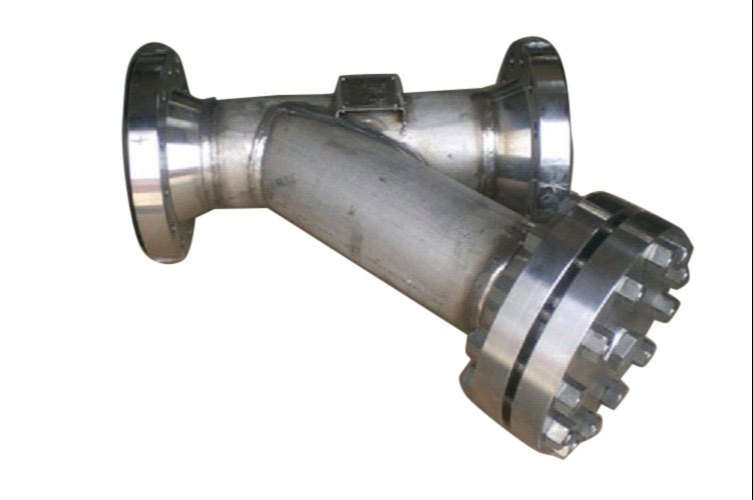

Seamless Material and Wall Thickness Matching

Because our housings are manufactured using premium seamless tubes, we can build your Y-strainer from the exact same material grade, wall thickness, and pressure rating as your existing pipeline. This ensures uniform thermal expansion, identical chemical resistance, and the exact same welding compliance criteria as the rest of your facility.

Spatial Flexibility and Smart Drainage

The compact profile of the Y-pattern allows for a space-saving installation. The Duomax Line™ excels in both horizontal layouts and downward-flowing vertical pipelines. When installed vertically, gravity naturally sweeps captured particulates into the extended branch leg, allowing for thorough draining, blowing down, and system flushing without leaving stagnant pockets of debris.

Precision Internal Layout and Bypass-Free Engineering

A pipeline filter is only as effective as the seal between its removable element and the outer shell. A loose fit allows contaminated fluid to bypass the screen entirely, rendering the filter useless.

The Duomax Line™ addresses this through precision manufacturing:

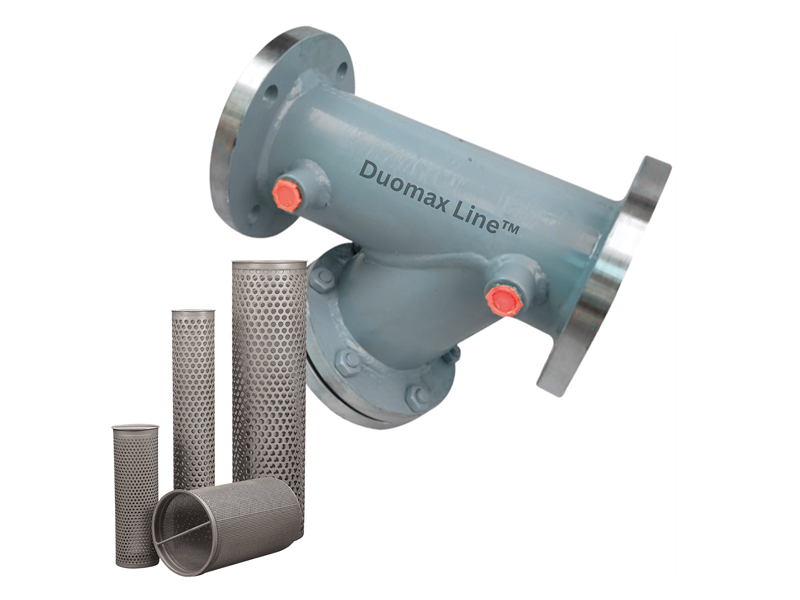

• Round Profile Guide Rails: A heavy-duty branch is welded into the base seamless pipe. Inside this Y-junction, we integrate precision-machined, round-profile guiderails.
• Bypass-Free Filtration: These internal rails ensure that the strainer insert slides into its seat with a tight tolerance. By customizing the interface between the basket and the housing for every unit, we guarantee a secure, bypass-free seal.
• Easy Maintenance Accessibility: When it is time to service the screen, technicians simply open the flange or threaded plug on the service leg, sliding the basket out cleanly along the internal rails.

High Surface Area and Favorable Pressure Loss

The internal geometry of the Duomax Line™ is designed to keep your system pressure stable over extended operational cycles.

The Inclined Flow Path

The internal perforated plate support screen is positioned at a precise inclination angle of 120° to 135° relative to the main horizontal flow axis. This specific slope allows the incoming fluid to pass through the wire mesh with minimal directional resistance, maintaining an exceptionally low pressure loss during continuous plant operation.

High Debris Volume and Long Running Cycles

Because the internal filter screen extends deep into the elongated Y-branch, this design provides a massive filtration surface area roughly twice the available filter surface area of a standard compact T-strainer. As the main fluid stream constantly flushes past the screen, collected debris is systematically pushed down into the bottom of the long storage leg. This keeps the primary flow path clear, resulting in a large dirt-holding capacity and an exceptionally long operational service life.

Proactive Pressure Modeling and Operational Safety

To ensure your filtration hardware matches your exact working conditions, our technical team provides detailed performance calculations during your engineering and procurement phases.

We model your specific fluid properties to determine the precise operating pressure losses for two critical lifecycle stages: the completely clean screen state and the 50% contaminated scenario. Additionally, we analyze your process parameters to verify the maximum allowable differential pressure—the burst pressure limit—ensuring the perforated core can handle heavy debris loading without deforming.

For maximum operational safety, we highly recommend installing differential pressure monitors across the strainer housing. This allows your control room to track real-world debris accumulation in real time and schedule maintenance cleanings before a full basket restricts your pipeline flow.

Technical Performance Specifications

Operational Feature	Duomax Line™ Y-Strainer Specification
Construction Method	Fully fabricated, welded design using high-grade seamless tubing
Element Geometry	120° to 135° inclined seat for optimized hydraulic flow
Surface Area	Advantage Roughly 2× the filtration surface area of a standard T-strainer
Material Matching	Custom built to match pipeline metallurgy, thickness, and pressure limits
Quality Control	Precision guide rails for a verified, bypass-free internal seal

Optimize Your Pipeline Performance

By combining the low flow resistance of an angled-seat configuration with the robust material matching of a welded construction, the Duomax Line™ Y-Strainer provides heavy-duty security for your essential machinery.

Whether you are routing a high-temperature steam line, managing a high-pressure gas system, or protecting a chemical process loop, our engineering team is ready to assist. Contact us today to receive a customized pressure drop calculation and a tailored quote for your facility.

Frequently Asked Questions (FAQ)

1.What are the main benefits of a fabricated welded Y-strainer over a traditional cast model?

A fabricated welded strainer gives you exact material matching. Cast strainers are restricted to standard foundry alloys and fixed wall thicknesses, which might not match your pipe network. Because the Duomax Line™ is built using high-grade seamless tubes, we can match the exact metallurgy, wall thickness, and pressure rating of your pipeline. This eliminates thermal expansion discrepancies, ensures identical corrosion allowances, and simplifies site welding compliance.

2.Why is the internal screen positioned at an angle of 120° to 135°?

This specific inclination angle optimizes the fluid dynamics inside the housing. By slanting the perforated screen relative to the main horizontal axis, the fluid transitions through the mesh with minimal turbulence and directional resistance. This layout also allows gravity and fluid velocity to naturally sweep captured particles down into the storage branch, keeping the primary flow channel clear and maintaining a very low pressure drop.

3.How does the Duomax Line™ guarantee “bypass-free” filtration?

In many standard strainers, fluid can slip around the edges of the filter element if the internal fit is loose, letting debris flow downstream. The Duomax Line™ utilizes precision-machined, round-profile guide rails welded inside the housing branch. The filter insert is custom-fitted to slide tightly into these rails, creating a secure mechanical seal that ensures all process fluid passes directly through the mesh.

4.Can the Duomax Line™ be installed in a vertical pipeline?

Yes, provided the fluid is flowing downward. When installed in a vertical downward run, the angled branch must point downward as well. This configuration allows gravity to pull captured scale and solids into the storage leg. If you try to install a Y-strainer in a vertical line with an upward flow, debris will naturally fall back down into the upstream pipe whenever the flow stops, making it impossible to collect and clean efficiently.

5.Why does this design have a longer service life than a standard T-strainer?

The Duomax Line™ features an elongated branch chamber that houses a longer filter basket, yielding roughly twice the filtration surface area of a standard compact T-strainer. Because the primary flow stream continually pushes particles down into the deep storage reservoir at the bottom of the leg, the main filter face remains clean and unobstructed for a much longer period, reducing maintenance frequency.

---
