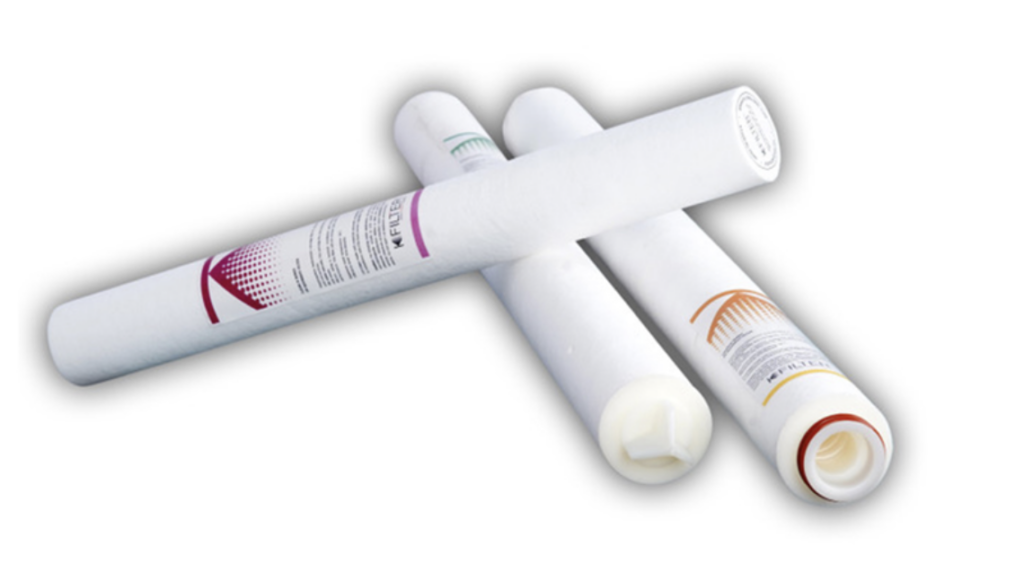

Maximizing RO System Lifespan from K Filters

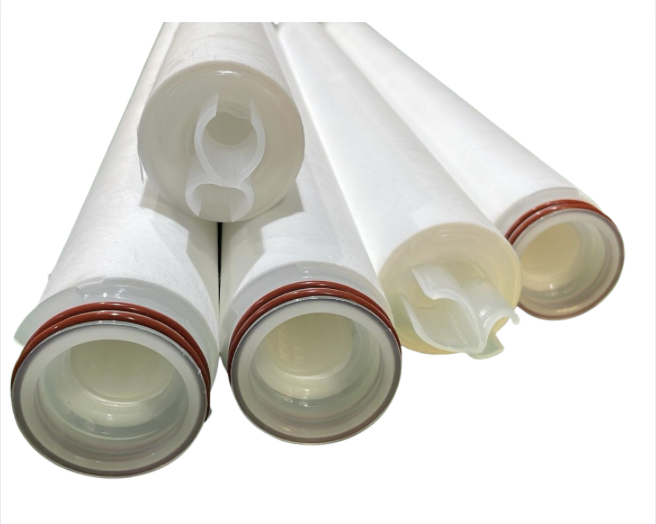

40 inch 5 micron spun sediment filters qatar are used in as a commercial Reverse Osmosis (RO) plant or a large-scale water treatment facility in Qatar, Sediment Filters just a preliminary step. It is your primary line of defense. High salinity, fine desert sand, and variable feedwater quality place an immense amount of stress on RO membranes. If your pre-filtration fails, your expensive membranes foul early, energy costs spike, and downtime follows.
Having spent nearly three decades manufacturing and supplying filter cartridges across Qatar and the Middle East, I have seen firsthand how minor choices in pre-filtration specifications yield massive impacts on operational budgets.
Here is a practical look at why the 40-inch 5-micron spun sediment filter has become the industry standard for RO protection in Doha, and what you should look for in a reliable supplier.
The Role of 40-Inch 5-Micron Spun Filters in RO Protection
In desalination and brackish water treatment, the goal of a sediment cartridge is simple: trap suspended solids before they reach the high-pressure pump and the RO membranes.
Why 40 Inches Filters?
Larger RO systems use multi-round filter housings designed specifically for 40-inch elements. Using a single 40-inch cartridge instead of stacking multiple 10-inch or 20-inch filters eliminates the need for couplers. This drastically reduces the risk of bypass, a common issue where unfiltered water slips through the gaps of stacked elements and directly fouls the membranes.
Why 5 Microns?
A 5-micron rating strikes the ideal balance for RO pre-filtration. It is fine enough to capture the silt, sand, and particulate matter that cause mechanical abrasion or fouling on membrane surfaces, yet coarse enough to maintain an acceptable pressure drop and high flow rate.

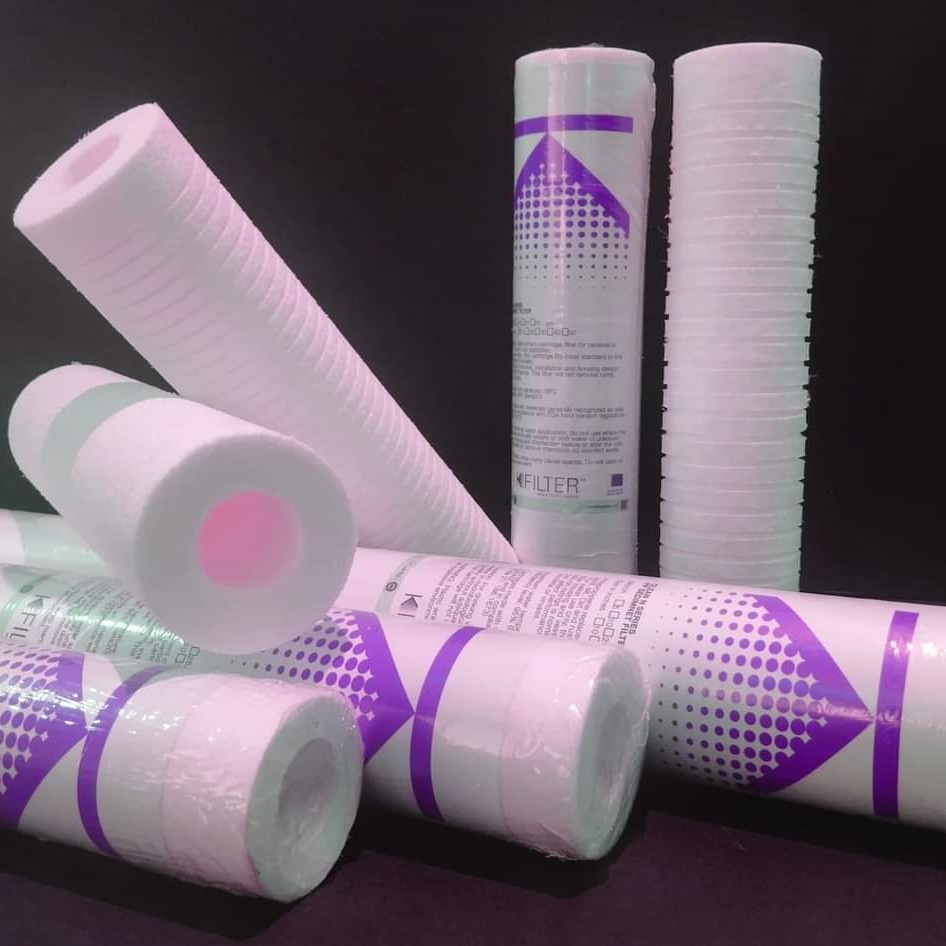

Introducing the RO Protect Series: Engineered for Gulf Water Conditions
Middle Eastern feedwater presents unique challenges, particularly high ambient temperatures and fine particulate loads. Our RO Protect Series desalination water filter cartridges are manufactured specifically to handle these demanding conditions.
Unlike standard off-the-shelf filters, the RO Protect Series uses a graded-density matrix. The outer zones feature a more open structure to trap larger particles, while the inner core achieves a tight 5-micron rating for fine sediment retention.
Key Technical Specifications
| Feature | Specification / Detail |
|---|---|
| Filter Media | 100% Pure Polypropylene (Thermal Bonded) |
| Length | 40 Inches (1016 mm) |
| Micron Rating | 5 Micron (True Depth Filtration) |
| Core Construction | High-collapse-resistance polypropylene core options |
| Chemical Compatibility | Broad resistance to acids, bases, and RO cleaning chemicals |
| Certification | Manufactured with FDA-compliant materials for water contact |
By utilizing thermally bonded microfibers, these cartridges ensure zero media migration. You won’t have to worry about loose filter fibers breaking off and clogging your downstream equipment.
Supply Chain Reliability: Fast Delivery in Doha and Across Qatar
In the water treatment sector, waiting for critical spares isn’t an option. A delay in replacing fouled filters can force you to run your RO system at higher pressures, damaging membranes, or worse, shutting down production entirely.Because we maintain local manufacturing insights and inventory tailored specifically to the Qatari market, we eliminate the long lead times associated with international shipping
- Local Stocking: We maintain high-volume inventory of the 40-inch RO Protect Series right here in the region.
- On-Demand Dispatch: Rapid delivery directly to your facility in Doha, Industrial Area, Mesaieed, or Ras Laffan.Technical Support: Access to specialists who understand water chemistry, differential pressure diagnostics, and housing compatibility
Here is a direct, practical comparison of how our RO Protect Series matches up against a premium brand like Pall for standard 40-inch 5-micron RO pre-filtration applications.
When plant managers in Doha evaluate filtration options, the brand that almost always comes up as the high-end benchmark is Pall Corporation. They make exceptional filters—there is no debating that. Their Profile II and Nexis series are excellent absolute-rated and high-efficiency depth cartridges.
However, running a desalination or large-scale RO facility in Qatar requires balancing strict technical performance with real-world operating economics and supply chain security.
Here is a direct, practical comparison of how our RO Protect Series matches up against a premium brand like Pall for standard 40-inch 5-micron RO pre-filtration applications.
Key Operational Differences
| Evaluation Factor | Premium Import (e.g., Pall Profile II / Nexis) | RO Protect Series (Our Supply) |
|---|---|---|
| Primary Design Intent | Highly specialized, often absolute-rated for critical process fluids, electronics, and fine chemicals. | Specifically engineered as a high-capacity sacrificial depth barrier for RO protection in high-salinity Gulf feedwater. |
| Material & Construction | Proprietary CoLD Melt fiber technology or advanced absolute depth matrices. | Graded-density, thermally bonded 100% pure polypropylene microfibers with high core collapse resistance. |
| Filtration Mechanics | Precise absolute or high-efficiency particle retention targeted at specific micron boundaries. | High dirt-holding capacity depth filtration designed to handle the heavy silt and fine sand typical of Qatar’s coastal feedwater. |
| Availability in Doha | Often subject to international supply chains, transit delays, or custom clearance timelines. | Maintained in high-volume local stock with rapid dispatch to Doha Industrial Area, Ras Laffan, and Mesaieed. |
| Cost Efficiency | High initial capital expenditure per cartridge, reflecting its specialized international branding. | Optimized cost-to-performance ratio designed to lower the annual consumable budget for multi-round housings. |
The Reality of RO Pre-Filtration in Qatar
When choosing between these two approaches for an RO plant, the decision usually comes down to how your feedwater behaves.
1. Sacrificial vs. Absolute Filtration
Pall filters excel in applications where an absolute retention curve is mandatory—such as pharmaceutical lines, electronics rinsing, or final polishing steps. However, for the first-stage protection of an RO system treating seawater or brackish water, the filter’s job is to be an economical, high-capacity sacrificial barrier.
Because Gulf water often carries unexpected spikes in suspended solids due to seasonal conditions or coastal activity, filters can blind prematurely. Replacing an expensive absolute-rated import that has blinded early hurts your operating budget far more than replacing a localized, high-capacity depth filter engineered for that exact burden.
2. Media Integrity and Bypass Protection
Like premium imports, our RO Protect Series uses pure thermal bonding. There are no binders, glues, or surfactants that could leach into your stream and foul downstream membranes. Both options offer the 40-inch continuous length configuration, which is critical to eliminate the bypass issues found when stacking smaller cartridges.
3. Supply Chain Security and Logistics
The most technically perfect filter does you no good if it is sitting in an overseas warehouse or delayed at a port while your differential pressure gauges are in the red.
Our core advantage over international brands is proximity. We keep large volumes of the 40-inch 5-micron specifications locally positioned. When your plant encounters a sudden high-turbidity event and you go through your inventory faster than planned, we can have replacement stock at your facility in hours, not weeks
Making the Right Choice for Your Plant
When evaluating sediment filter suppliers in Doha, look beyond the unit price. Consider total cost of ownership. A low-quality spun filter might save a small amount upfront, but if it unloads sediment under pressure or requires replacement twice as often, it becomes an expensive liability.

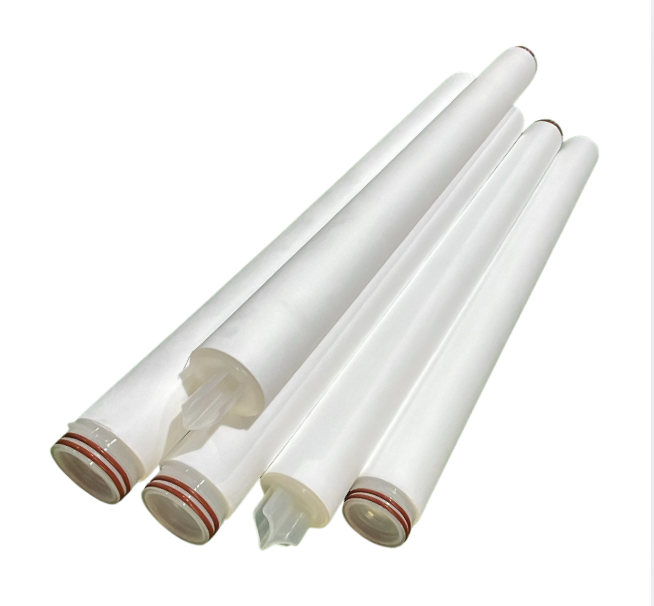

The RO Protect Series is engineered to offer high dirt-holding capacity, stable differential pressure, and predictable service life.If you are looking to optimize your RO pre-filtration, reduce your membrane replacement frequency, or establish a reliable local supply chain with fast delivery times, let’s discuss your specific flow rates and water parameters. We can ensure your system remains protected day in and day out.
Frequently Asked Questions
Q1. What makes the 40-inch 5-micron filter the standard for RO pre-filtration in Qatar?
The 40-inch length is designed to fit standard multi-round industrial filter housings without requiring couplers or stacking. Stacking shorter filters introduces a high risk of bypass, where water slips through the joints unfiltered and clogs the RO membranes. A 5-micron rating provides the perfect balance—it captures fine desert sand, silt, and suspended solids without causing an excessive drop in water pressure or restricting your system’s flow rate.
Q2. How does the RO Protect Series handle Qatar’s high-salinity seawater conditions?
Our RO Protect Series is constructed from 100% pure, thermally bonded polypropylene microfibers. This material is completely inert and chemically resistant to high-salinity seawater, brackish water, and standard RO cleaning chemicals. Because the fibers are thermally bonded rather than glued, there are no chemical binders to leach into the water or foul the downstream membranes.
Q3. What is the difference between a “graded-density” filter and a standard spun filter?
A standard spun filter has a uniform density throughout, meaning it plugs up quickly on the outer surface. The RO Protect Series uses true graded-density construction. The outer layer has a more open structure to trap larger particles, while the inner core is spun much tighter to stop particles down to 5 microns. This allows the entire depth of the 40-inch cartridge to trap sediment, resulting in a much higher dirt-holding capacity and a longer service life before replacement is needed.
Q4. How fast can you deliver a bulk order of 40-inch cartridges to sites outside Doha, like Ras Laffan or Mesaieed?
Because we maintain a continuous, high-volume inventory specifically tailored to the Qatari market, we can offer rapid delivery. Standard stock items can typically be dispatched and delivered to the Doha Industrial Area, Mesaieed, Ras Laffan, or Dukhan within 24 to 48 hours, eliminating the costly shipping delays associated with international suppliers.
Q5. At what differential pressure (ΔP) should the RO Protect Series filters be replaced?
For optimal protection of your high-pressure pumps and RO membranes, we recommend replacing the 40-inch cartridges when the differential pressure reaches 1.0 to 1.5 bar (14.5 to 21.7 psi), or every 3 to 6 months depending on your feedwater turbidity. Running filters past this point increases the risk of particle unloading or cartridge deformation.
Q6. Can the RO Protect Series directly replace brands like Pall or Pentair in our existing housings?
Yes. The RO Protect Series is manufactured to standard industrial dimensions (typically a 2.5-inch outer diameter and 1-inch inner diameter) and is available in standard configurations like Double Open End (DOE) or single-open-end styles with standard O-ring configurations (such as Code 7 or Code 3). They are a direct, drop-in replacement for existing multi-round housings without requiring any hardware modifications.
