Condensate polishing – Power plant condensate water filtration is critical because the condensate is continuously recycled back into the boiler. Any contamination in this loop can quickly damage equipment, reduce efficiency, and cause costly shutdowns. We are offering our range of PurePleat Condensate polishingwater filtration is a critical process in thermal and combined-cycle power plants. During steam condensation, corrosion products such as iron oxide, suspended solids, and fine particulates are generated within piping, condensers, and heat exchangers. Pleated condensate filters are widely used to remove these contaminants, protecting boilers, turbines, and downstream water treatment systems while ensuring reliable plant operation. specially designed for excellent chemical compatibility with boiler condensate water and high service life of power plants across the middle east.
PurePleat 60 inch or 70 inch Condensate power plant water filters are (recommended ~3.9 -to 4.5 m³/h design flow and Typical max ΔP ~2.8–3.0 bar (40–43 psi) are made by pure polypropylene media are backwash washable and reusable designed significantly increase service life and reduce element cost/consumables.
Condensate polishing water filter Micron Ratings
Available in a range of filtration ratings (e.g., 1 µm, 4 µm, 5 µm, 10 µm, 20 µm), suitable for start-up protection and regular service polishing to control particulates and iron oxide
Typical Uses in Power Plants Condensate polishing filter
- Condensate Polishing / Clarification — Protects downstream equipment and boiler feed systems by removing suspended solids and corrosion by-products
- Start-Up & Operating Filtration — Lower micron for normal operation; slightly higher micron (e.g., 10 µm) during start-up or heavy solids load
- RO Pretreatment & Cooling Water Feed — Back-washable PP pleated elements also serve as pre-filters ahead of reverse osmosis (RO) units
What Is Condensate Pleated polishing Filters?
Condensate polishing Condensate filters are high-surface-area cartridge filters designed specifically for condensate and boiler feed water applications. Unlike traditional depth filters, pleated filters use folded media to provide:
- Large effective filtration area
- Low pressure drop
- High dirt-holding capacity
- Consistent micron-rated filtration
They are commonly manufactured in long lengths (60″ or 70″) for high-flow power plant systems.
How to protects the boiler and Turbine PurePleat Condensate water Filter
In thermal power plants (coal, gas, nuclear), steam drives the turbine, then condenses back into water (condensate). If this condensate contains impurities such as:
Iron (from corrosion)
- Copper (from condenser tubes)
- Silica
- Dissolved salts
- Suspended particles
It can:
- Cause scaling inside boiler tubes
- Lead to corrosion
- Damage turbine blades
- Reduce heat transfer efficiency
Even very small amounts of contamination can cause major long-term damage because the cycle is continuous.
Prevents Corrosion in Condensate water Filter
Condensate systems operate at high temperature and pressure. If dissolved oxygen, chlorides, or acidic compounds are present, they can cause:
- Pitting corrosion
- Flow-accelerated corrosion
- Tube failures
Filtration removes corrosion products and prevents them from returning to the boiler.
Construction & Materials PurePleat Filter
Filter Media
Pure Polypropylene (PP) is most commonly used
Excellent chemical compatibility with condensate water
Resistant to corrosion and biological growth
Suitable for continuous operation in typical condensate temperature ranges
Support Structure
Polypropylene or stainless-steel core
PP end caps and O-ring seals
Robust construction to withstand system pressure and backwash cycles
Pleated Design
Increases surface area significantly compared to string wound cartridges
Allows higher flow rates per element
Enables effective backwash and reuse in suitable designs

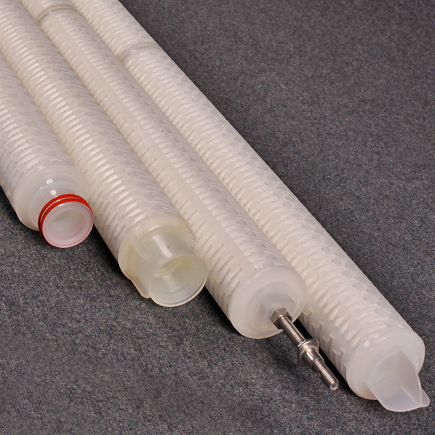

Back washable & Reusable Design
Many condensates pleated filters used in power plants are backwash-cleanable, allowing:
- Multiple reuse cycles
- Reduced operating and consumable costs
- Longer service life compared to disposable cartridges
Backwashing remPower plant Polishing water filteroves accumulated iron oxides and fine solids without damaging the pleated structure, making these filters ideal for continuous plant
Applications in Power Plants
Condensate pleated filters are typically installed in:
- Condensate polishing systems
- Start-up filtration during commissioning
- Protection of boiler feed water systems
- Removal of corrosion products from return condensate
PurePleat Filter help prevent fouling of:
- Boiler tubes
- Control valves
- Heat exchangers
- RO or demineralization systems (if installed upstream)
