Stainless Steel Sintered Filter Elements – In the petrochemical industry, filtration systems operate under extreme conditions—high temperatures, corrosive gases, pressure fluctuations, and continuous duty cycles. Stainless steel sintered felt filter elements have emerged as a critical solution for fuel gas and exhaust gas filtration due to their mechanical strength, thermal stability, and precise filtration performance. These elements help protect downstream equipment, improve process efficiency, and ensure compliance with environmental and safety regulations.
Stainless Steel Sintered Filter Elements?

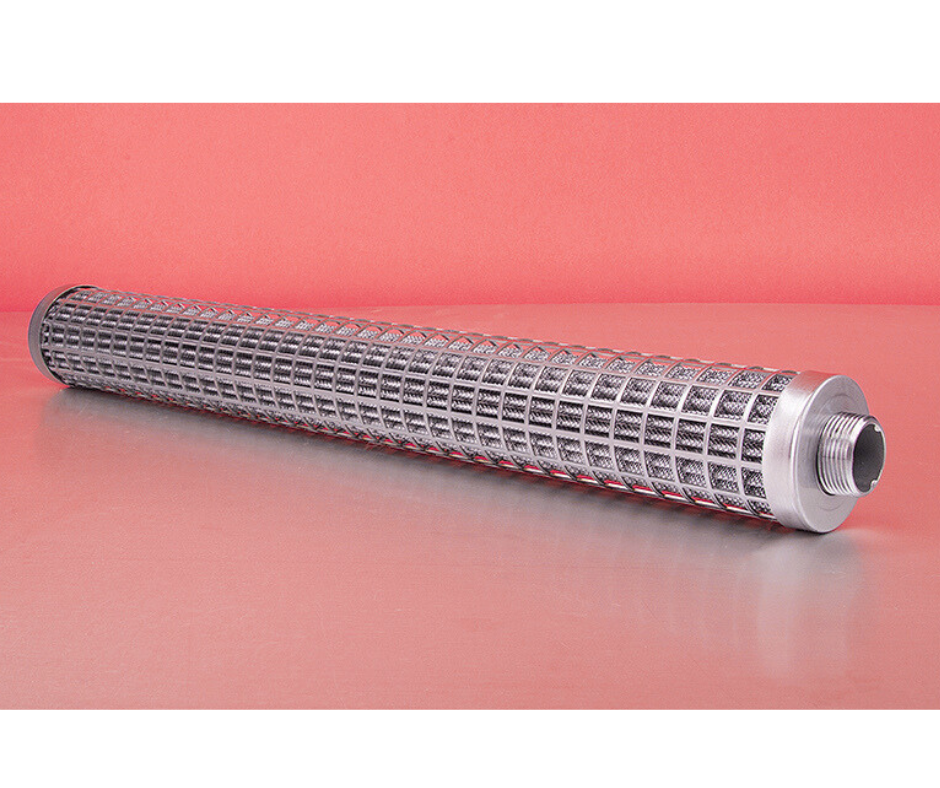

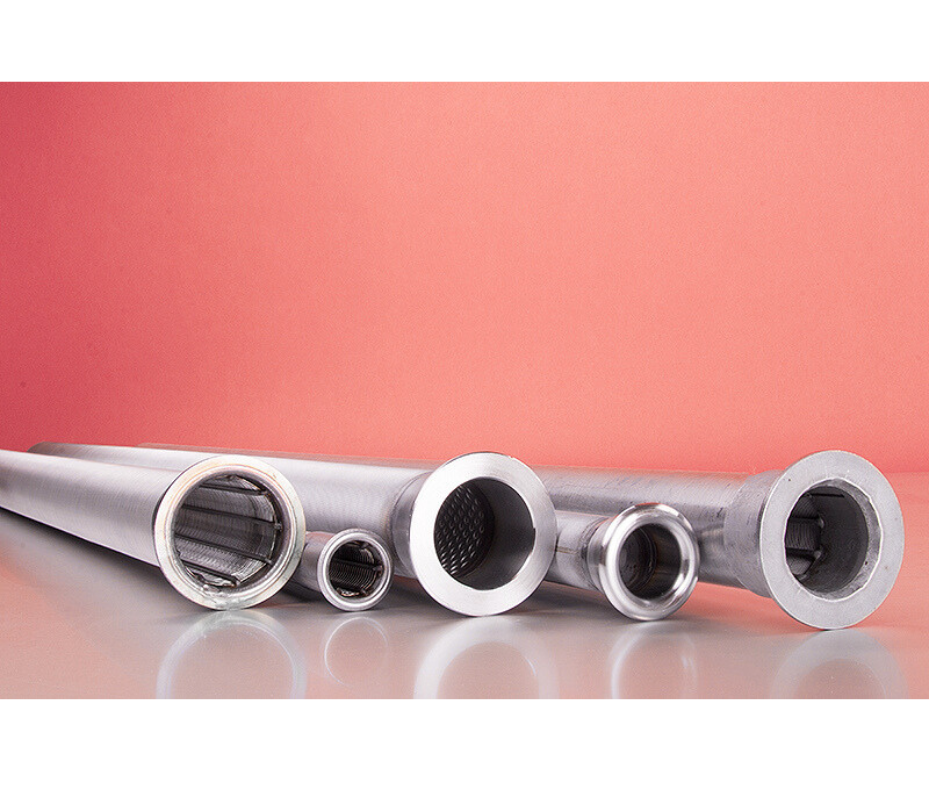

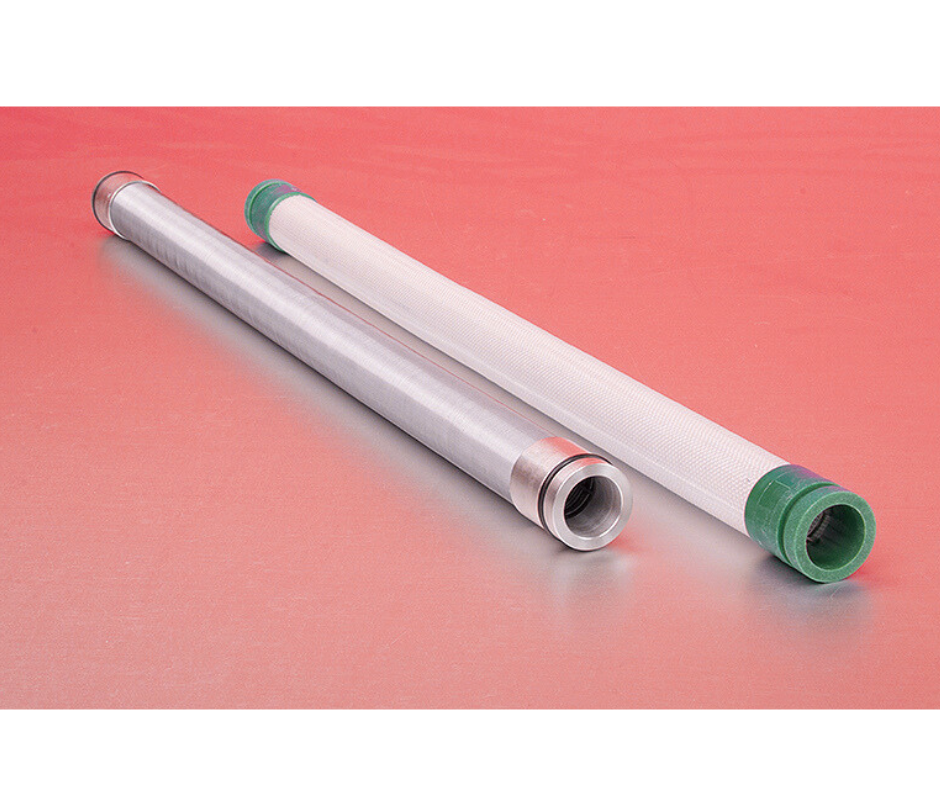

Stainless Steel Sintered Filter Elements is a porous metallic filtration medium manufactured by layering fine stainless steel fibers and sintering them under high temperature in a vacuum environment. The sintering process bonds fibers at contact points without melting, creating a uniform, three-dimensional pore structure.
Common materials include:
SS 304 / 304L – general corrosion resistance
SS 316 / 316L – superior resistance to acids and chlorides
High-alloy stainless steels – for extreme chemical and thermal environments
1. High Temperature Resistance
Sintered felt filter elements can operate continuously at temperatures up to 600–800°C, making them ideal for hot fuel gas and exhaust gas streams.
2. Excellent Filtration Efficiency
The gradient pore structure enables:
High dirt-holding capacity
Filtration ratings from 1 μm to 100 μm
Stable filtration efficiency even under pulsating flow
3. Mechanical Strength & Durability

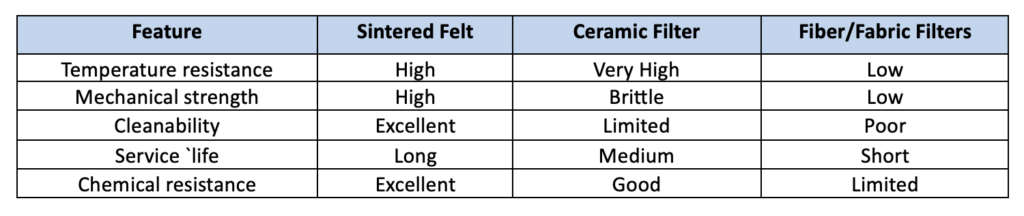

Compared with woven wire mesh, sintered felt offers:
Higher compressive strength
Resistance to vibration and pressure shocks
Long service life in harsh operating conditions
4. Corrosion and Oxidation Resistance
Stainless steel construction ensures reliable performance in:
Sulfur-containing exhaust gases
Hydrocarbon vapors
Acidic and alkaline process gases
5. Cleanability and Reusability
These elements are fully regenerable using:
Backflushing
Ultrasonic cleaning
Chemical cleaning
This significantly reduces operating and replacement costs.
Applications in the Petrochemical Industry
Fuel Gas Filtration
In fuel gas systems supplying furnaces, heaters, and gas turbines, sintered felt filters:
Remove solid particulates and catalyst fines
Protect burners and control valves
Ensure stable combustion and energy efficiency
Exhaust Gas Filtration
For exhaust and tail-gas treatment systems, they are used to:
Capture fine particulate matter
Withstand thermal cycling during startup and shutdown
Support downstream emission control technologies
Typical Use Cases
Hydrogen-rich fuel gas purification
Refinery heater exhaust systems
Petrochemical reactor off-gas filtration
Catalyst recovery and protection systems
Typical Use Cases
Hydrogen-rich fuel gas purification
Refinery heater exhaust systems
Petrochemical reactor off-gas filtration
Catalyst recovery and protection systems
Environmental and Economic Benefits
- Supports emission reduction and regulatory compliance
- Reduces unplanned shutdowns due to filter failure
- Lowers total cost of ownership through long service life and reuse
- Enhances process safety in flammable fuel gas systems
