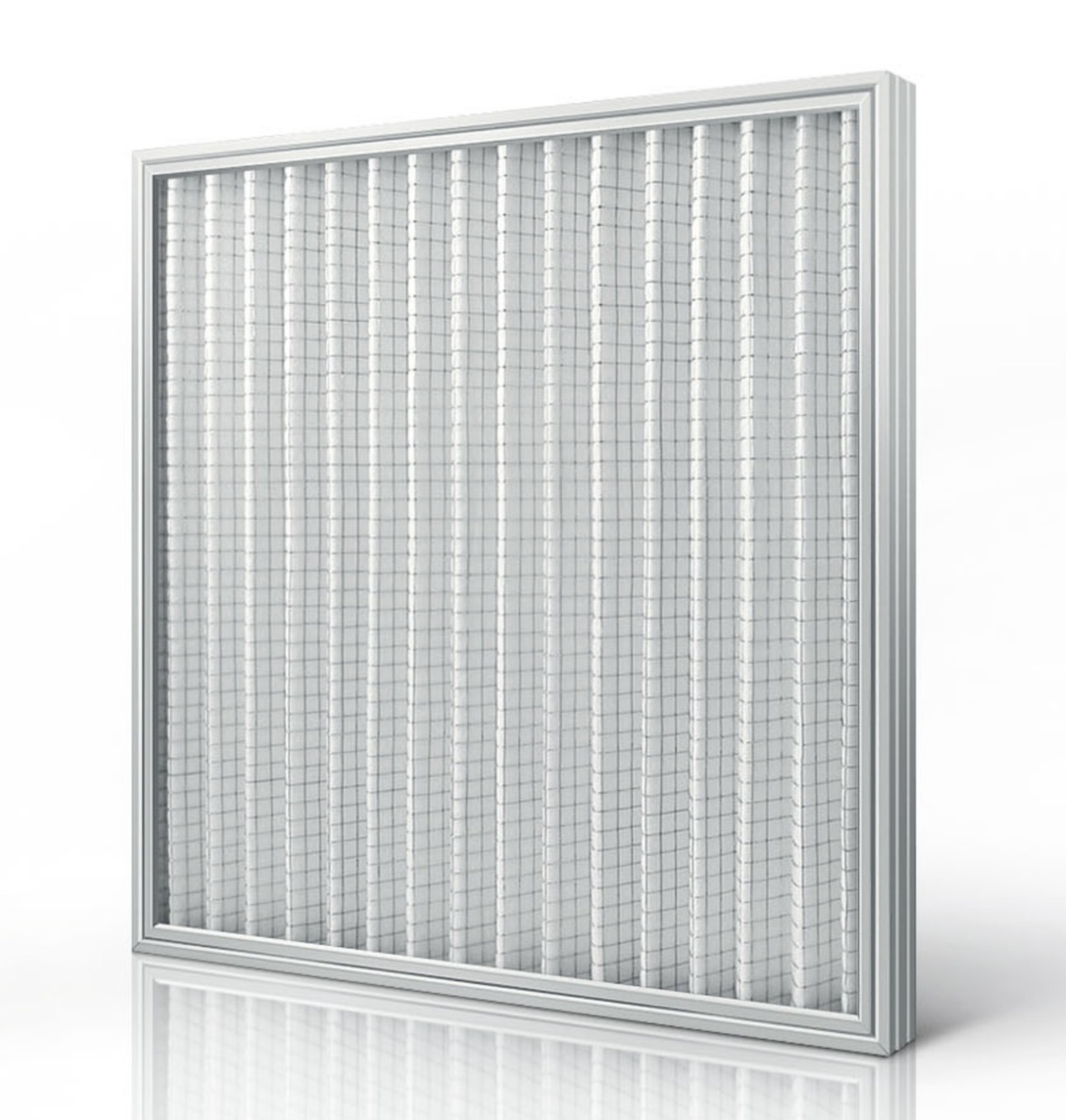

V Wash Filter
V wash filters (vertical wash filters) are specially designed to be washable and cleanable for reuse as a pre-filter for ventilation systems to retain dry dust, grease, and coolant mists that enter before sensitive filters. Synthetic filter material is placed in a metal frame supported by cage wire. For low pressure loss and high dust-holding capacity, the synthetic filter material is placed in a zig-zag frame by being piled. Flat and replaceable material models are available for low-impact applications. Filters are available in various efficiencies: ISO 16890 coarse or old filter class G3 (EU3)–G4 (EU4).
Our Key Features
- Type: Washable
- Frame: GI, Aluminium, Stainless steel (Custom made)
- Pleat support: Galvanized Steel / Aluminium, PVC Galvanized metal on both side
- Media: ISO 16890 High density Synthetic fibre
- Average yield % (Am): 92% <
- Average efficiency % (Em):
- ISO 16890 Class: 30% – 45%
- Recommended Final Pressure Drop: 250 Pa.
- Temperature: 100oC.
Advantage
- Light weight, easy to washable
- Custom Made
- Low cost
- High dust holding capacity
- Low pressure drops
- Suitable for variable and turbulent air flow systems
- Zero air bypass
- Both side pleated mesh supported media upstream and downstream enhances filter mechanical strength
- 100% moisture resistant synthetic fibber media
- Not promote microbial growth
