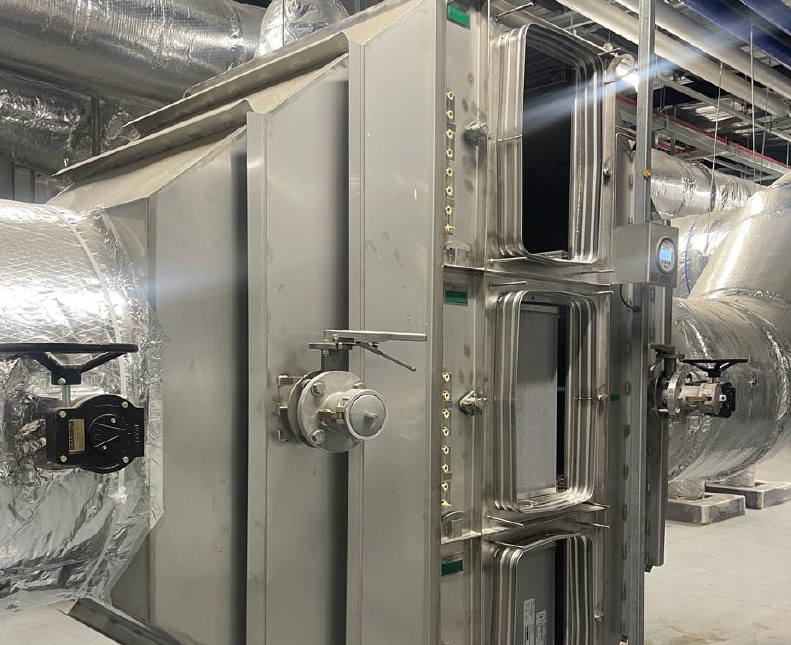

BIBO Flow Bag in Bag Out unit
BIBO (Bag-In/Bag-Out) Flow Filter Systems are high-efficiency filtration solutions designed to safely remove hazardous and harmful contaminants from exhaust air before it is discharged to the outdoors.
Constructed with robust stainless-steel housings, K Filter Made Safe BIBO Flow Bag Filters are engineered for use in hazardous environments, providing superior protection for building operators, facility personnel, and the general public. These systems are specifically designed to handle dangerous biological, radiological, and carcinogenic materials.
Our Key Features
- Achieves H14 (> 99.995%) to EN1822:2009.
- Lower power consumption
- Pressure boundaries are 100% seal welded and leak free. Multiple safe protect
- Dimension of the BIBO can be customized
- Built in falge
- Highly customizable with an assortment of pre-filters, carbon filters, and special transitions and installations Incorporates a ribbed bagging ring behind the access door, over which a PVC bag is attached
- 12 & 14 gauge type T304 stainless steel hardware with 2B Finish
- Low airflow resistance
- Standard pocket frame
- Light weight
- Long service life
- Fine micron filtration
- Capable of supporting any cleanroom configuration Features individual access doors for each filter section, pressure gauges and DOP testing ports
- Units are manufactured under a quality assurance program and then assembled, finished, inspected, individually tested and serial numbered by skilled, trained, and experienced craftsmen and systems
- Particles are evenly distributed across the filter surface
Application
- Hospitals and other healthcare facilities
- Toxic waste isolation plants
- Biomedical research and genetic engineering facilities
- Animal disease laboratories
- Food facilities
- Electronics manufacturing (cleanrooms)
- Industrial, research, and military facilities handling chemical, biological, radiological,
- or carcinogenic materials
- Pharmaceutical laboratories
Technical Specification
- Air Flow volume: 500 CFM up to 24,000 CFM
- Material: 12 and 14 gauge type T304 stainless steel (except for door star knobs)
- Sealant: 100% seal welded
- Filter Efficiency: Over 99.99% at particle dia over 0.3 μmor 99.9999% at 0.1μm
- Filter frame: Aluminum /galvanized steel
- Optional:
- Housings may be supplied with adjustable butterfly dampers
- Housings may be supplied with dual lamp UV lights
- Housings may be scan tested onsite and certified by a clean room
- specialist
