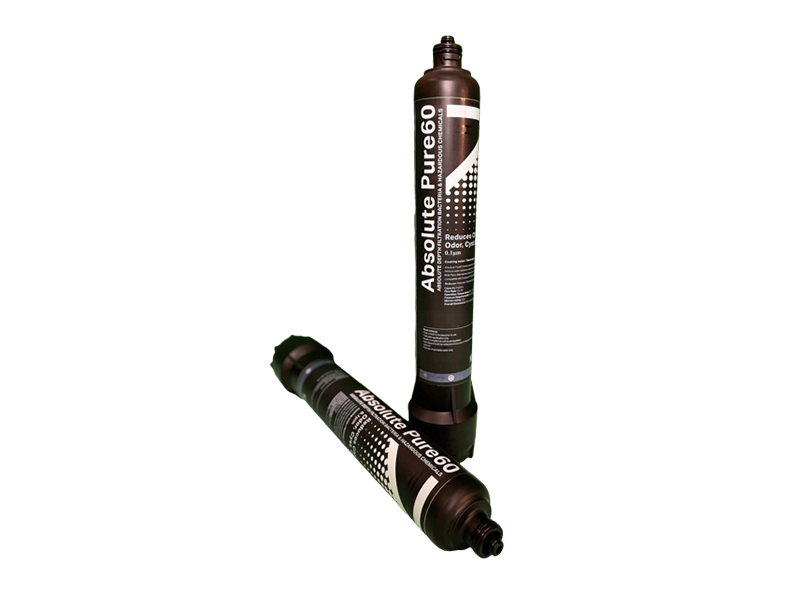

Absolute Pure60TM Filter Cartridge
K Filter Absolute Pure60TM series cartridge filter is integrated in the compact design for the food and beverage industry. Our Absolute Pure60TM single submicron hollow fiber membrane with 3-in-1 multiple filters has 9+ advanced particulate antibacterial filtration technologies integrated into multiple claims, including harmful bacteria, hazardous chemicals, removing sediment, particulate, cysts, turbidity, lead, and VOCs. Keep equipment running smoothly and prolong the service life of water-using equipment.
Improve water quality
Filter out micro filter particles larger than 0.5 /0.2um and remove chlorine, chloroform, odor, taste, cysts, scale formation and heavy metal* chemicals effectively.
High Flow Rate
Functions at a flow rate of up to 30L./min, the 20-inch PP filter incases the anti-fouling ability of Activated carbon filter.
Easy Filter Replacement
Push twist to lock design for easy filter replacement it can be done by yourself and no tools are needed.
Compatibility
K Filter is compatible with the most of existing filter heads from global companies, various filter sizes that can be installed without any space limits.
Operation Tips
- Preventative maintenance program – 6 months
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Always flush the filter cartridge at time of installation and cartridge change
- Electrical connection no required
Multiply Installation Methods
Supports various types of walls, such as foam wall, hollow bricks wall, steel plate wall and steel structure wall.
Application: Hot Beverages
| Technical Parameter | Features – Benefits |
|---|---|
| MODEL Absolute Pure60 | Antiviral special material |
| CAPACITY 60,000 L | UF Ultra protection |
| SIZE 200 X 105 X 620mm | Remove 99% of pollutant |
| INNER FILTER 1 X Absolute Pure60 | Seres and Parallel options |
| PRESSURE 0.1-0.6 MPa | Inlet gauge |
| SERVICE FLOW RATE 10 L/M | Reduced scale buildup |
| OPERATION TEMPERATURE 4°C – 40°C | Water fills every centimeter of housing |
| WORKING TEMPERATURE 5°C – 30°C | Highest quality standard |
| WATER SOURCES Municipal Water | Materials complied with NSF/ANSI 42 requirement |
| INLET/OUTLET 3/4″ (Optional 1/2″) | High durability |
| DRAIN VALVE 3/4″ | Reduces impurities |
| DP GAUGE: 1 | Siver loaded sub-micron AFC |
