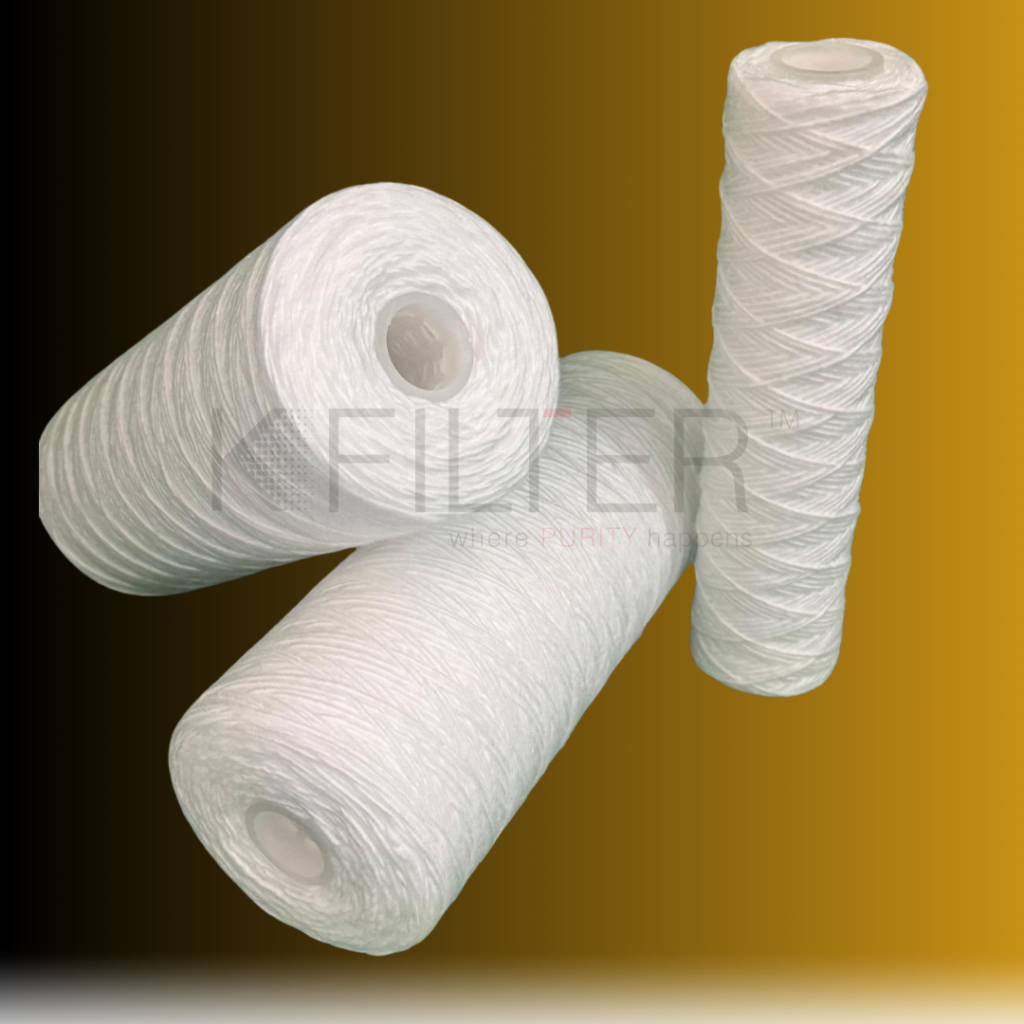

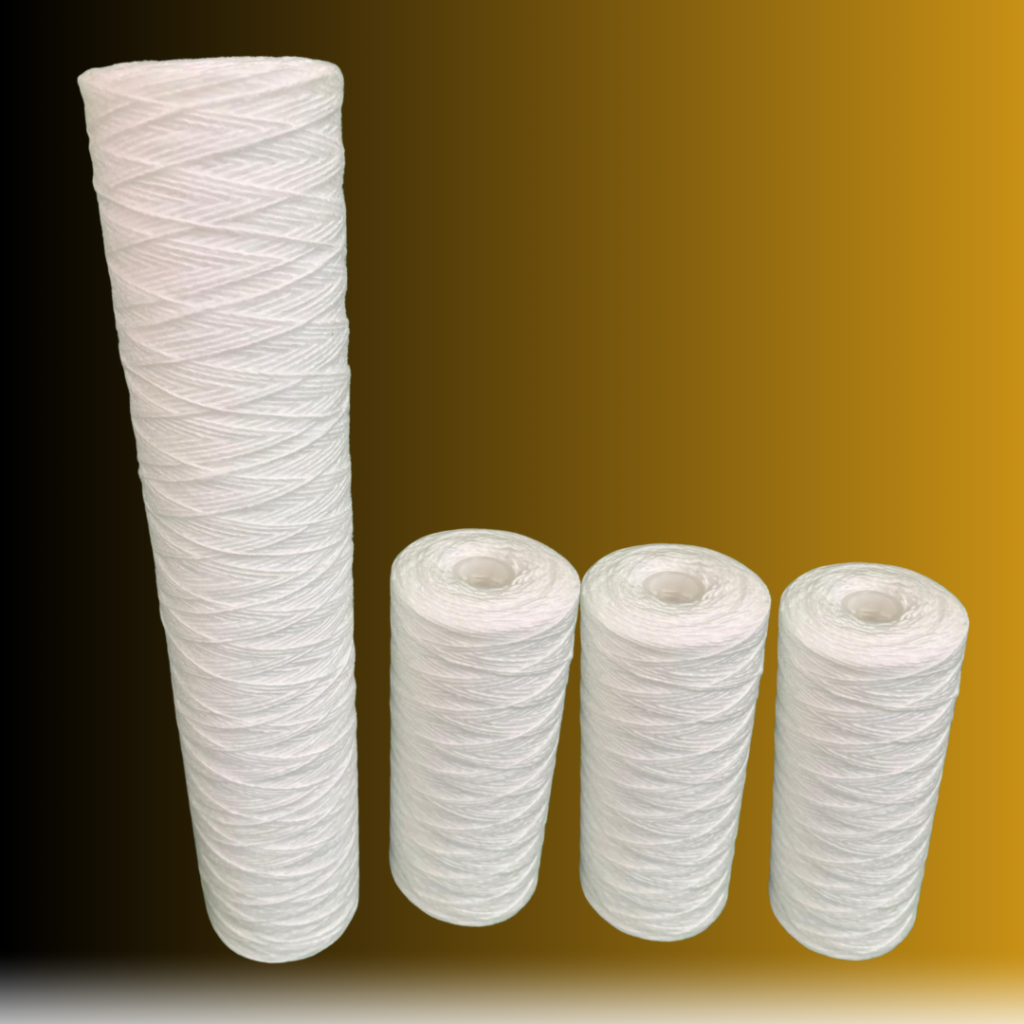

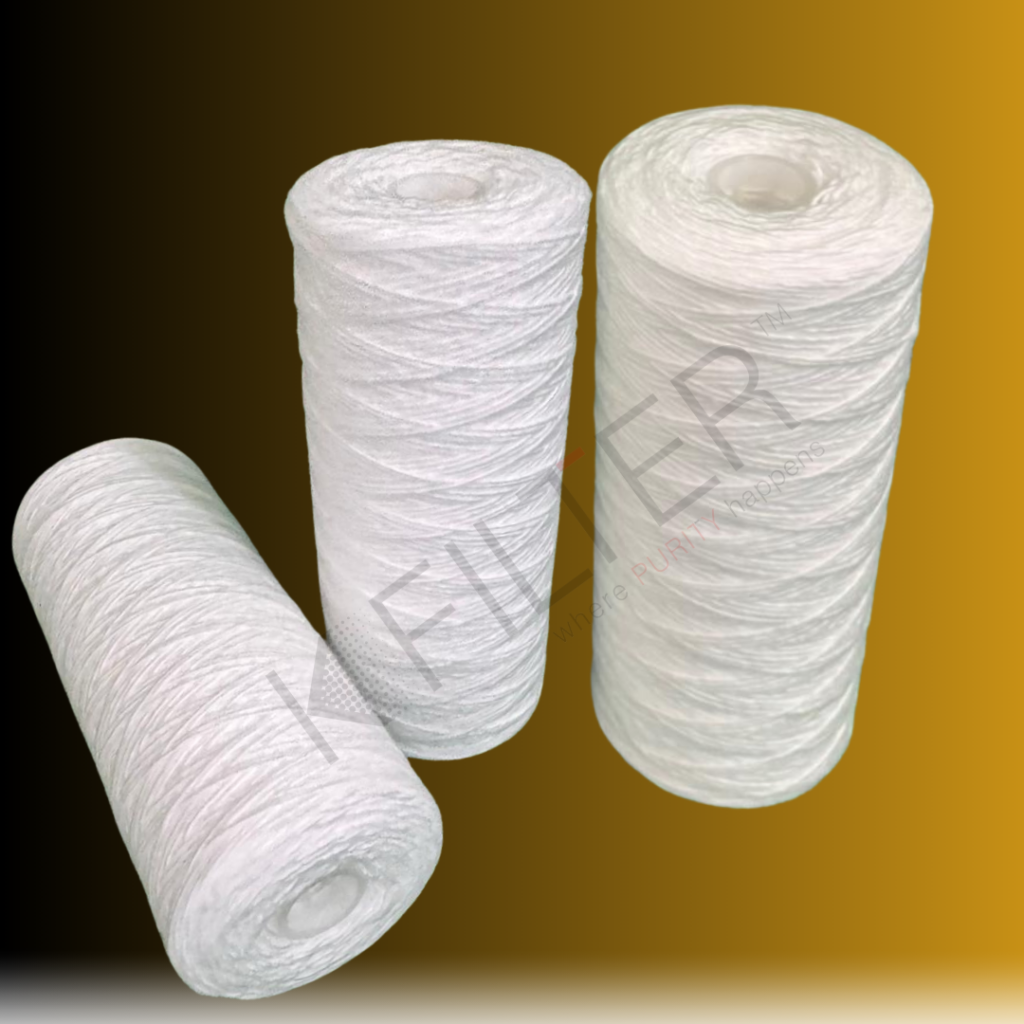

Jumbo Filter cartridge – Purewound Ultra PP 10-inch PP jumbo string wounded spiral filter cartridge is made by winding yarn (such as polypropylene) in layers around a central core special used Yacht and Boat water pre filtration . The spiral winding is looser on the outside and tighter toward the core, creating a gradient density structure and flow rate. This design of 10inch jumbo filter cartridge enables removal of particulate contaminants throughout the depth of the cartridge rather than just on the surface
10 inch Jumbo Yarn Filter Cartridge is a depth filter used in marine water systems — typically for pre-filtration of freshwater or seawater before it goes to pumps, watermakers /desalination units, ice machines, or potable water systems.
“Jumbo” refers to the larger diameter jumbo yarn filter cartridge for yacht boat and length (10 inch standard, but with a bigger core) which offers greater dirt-holding capacity and longer service life compared with standard cartridges.
Jumbo Filter cartridge – 10-Inch Yacht Boat string wounded spiral
Filter – Comprehensive Guide
What Is a 10-Inch Jumbo Yarn yacht Boat Filter?
10-inch Jumbo Filter cartridge or jumbo yarn filter (also called a string wound or wound filter cartridge) is a type of depth filter used primarily in water filtration for Yacht Boat water and other liquid filtration systems. It consists of a textile yarn (commonly polypropylene, cotton, or fiberglass) tightly wound around a rigid core structure to form a cylindrical element can get best and positive advangate . The “jumbo” designation refers to its larger diameter compared with standard slim cartridges, allowing higher flow and dirt-holding capacity.
How can I do Depth Filtration in Yacht boat
Water or liquid flows from the outside inward, and the pores get progressively smaller — large particles are trapped in outer layers while finer particles are caught deeper inside the media. This depth 10 inch jumbo yarn filtration mechanism gives these jumbo cartridges high capacity and effectiveness against a broad range of sediment sizes for Yacht Boat water filtration systems
Key Features yacht Boat Filters
Jumbo Size :
Length: approximately 10 inches (standard)
Diameter: typically ~4.5 inches (Jumbo Filter cartridge)
This larger form factor supports higher flow rates and greater sediment capacity than standard smaller filters. It’s ideal for whole-house systems, commercial setups, or heavy sediment loads.
Material Options
Common yarn materials include:
Polypropylene (pp) Jumbo Filter 10 inch (PP): most widely used thanks to chemical resistance and affordability
Cotton: can be used for specific solvent or fluid compatibility
Fiberglass: suitable for high-temperature and specialized applications
These materials can be combined depending on filtration needs.
Micron Ratings 10 inch Jumbo
Jumbo yarn filters are available in a range of micron ratings (e.g., 1, 5, 10, 25, up to ~100 µm), letting you control how fine the filtration should be — lower ratings filter finer particles but may require more frequent changes
Working Principle Comparison – 10 inch jumbo filter
Jumbo String Wound Filter
- Made by winding continuous yarn around a core
- Winding density can change from outside to inside
Traps:
- Large particles on the outer layer
- Finer particles deeper inside
- Can be designed with graded density (coarse → fine)
Depth Filtration & High Dirt Capacity
Thanks to their gradient density and deep PP media, these filters trap large amounts of dirt before clogging, extending service life relative to surface-only filters.
How Particles Are Removed
A yarn filter works by mechanical straining and physical entrapment:
✔ Straining – Particles larger than the pore spaces in the yarn are physically blocked
✔ Interception – Smaller debris gets caught between fibers
✔ Diffusion – Very fine particles are slowed and trapped within the depth of the yarn matrix
Together these mechanisms reduce turbidity and suspended solids in the water.
Advantages on Yachts/Boats (Water Filter Cartridges )
| Benefit | Why it Matters |
| High dirt capacity | Longer time between changes — critical on long trips |
| Stable flow | Protects downstream equipment (pumps, watermakers ) |
| Simple design | Easy to replace even at sea |
| No chemicals | Safe for potable use |
Flow Direction water Filter
Typically, flow goes from outside → inside of the cartridge:
- Raw water enters the outside of the yarn cartridge
- Water travels through the wound layers catching dirt
- Filtered water exits through the central core
- This ensures maximum use of all the yarn media.
Applications
Water Treatment
Typical Applications on a Boat
🚰 Freshwater Systems
Pre-filter before UV or carbon
Protects faucets and galley fixtures
🌊 Seawater Intake (before Desalination/Watermaker
🧊 Ice Makers & Appliances
Prevents scale and dirt build-up
Commercial and industrial water pre-treatment
These filters remove sand, rust, silt, dirt, and other suspended solids, protecting downstream systems like reverse osmosis membranes or carbon filters
Filtration Performance
| Parameter | String Wound | Spun |
| Dirt holding capacity | **** | *** |
| Pressure drop increase | Gradual | Faster |
| Flow consistency | Stable | Slightly more restrictive |
| Particle retention | Good | More consistent |
| Risk of channelling | Low | Very Low |
When the Cartridge Is Saturated
As the cartridge traps more particles:
- Pressure upstream rises
- Flow drops
- You’ll notice this on a pressure gauge or reduced water volume
Advantages
High Flow & Large Capacity
The jumbo 10 inch size enables higher flow rate handling and longer service life before replacement is needed.
Broad Compatibility
Polypropylene yarn in particular is chemically resistant, making it suitable for many water and industrial fluids.
Cost-Effective Maintenance
Often used as a pre-filter, they protect more expensive downstream filters, making overall system maintenance cheaper and more efficient
Easy Installation
These cartridges fit standard 10-inch jumbo filter housings, making them simple to swap during routine maintenance.
Limitations & Considerations
Not ideal for very fine filtration alone: For sub-micron filtration you may need additional membrane or carbon filters.
Replacement frequency depends on water quality: Sediment levels determine how often cartridges should be replaced (often 3–6 months in residential use)
Maintenance & Best Practice
- Replace regularly (based on turbidity and usage)
- Flush housing before cartridge change
- Use appropriate micron rating (e.g., 5 µm, 10 µm)
- Larger Jumbo Filter cartridge size lasts longer than standard 10″ filters
